Lexus ES: Parts Location

PARTS LOCATION

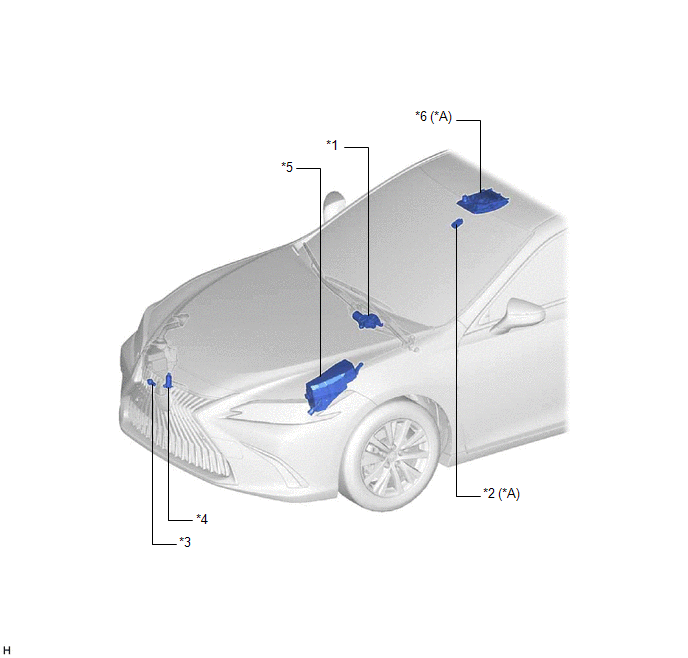

ILLUSTRATION

*A

w/ Auto Wiper System

-

-

*1

WINDSHIELD WIPER MOTOR ASSEMBLY

*2

RAIN SENSOR

*3

LEVEL WARNING SWITCH ASSEMBLY

*4

WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

*5

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY

- WIPER FUSE

- WIPER RELAY

- WASHER RELAY

*6

MAP LIGHT SUB-ASSEMBLY

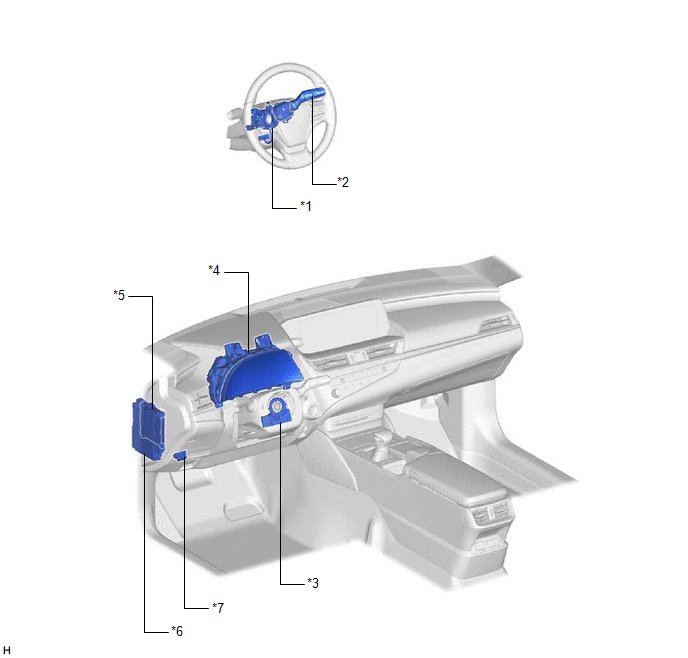

ILLUSTRATION

*1

STEERING WHEEL SWITCH HOUSING

*2

WINDSHIELD WIPER SWITCH ASSEMBLY

*3

STEERING SENSOR

*4

COMBINATION METER ASSEMBLY

*5

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- WASHER FUSE

- ECU-IG1 NO. 3 FUSE

*7

DLC3

-

-
