PARTS LOCATION

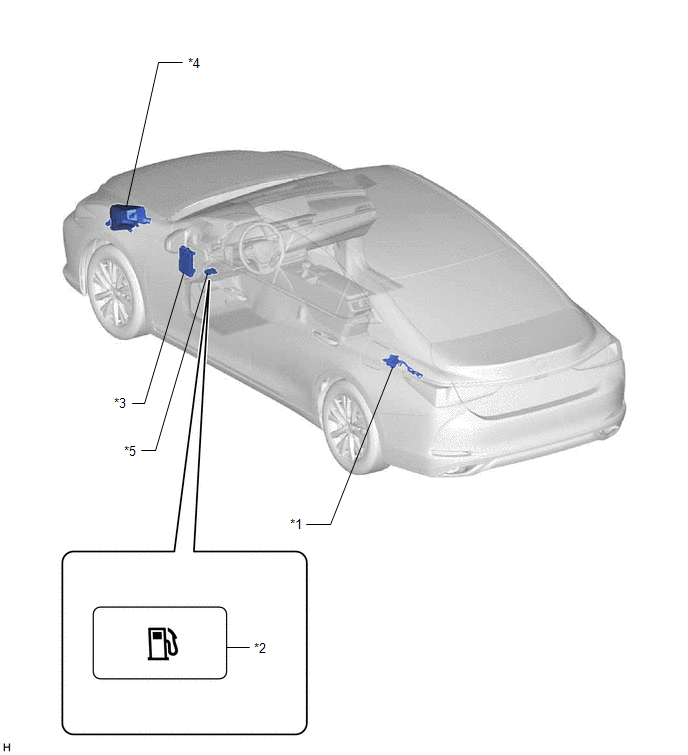

ILLUSTRATION
| *1 | FUEL LID LOCK WITH MOTOR ASSEMBLY | *2 | FUEL LID OPENER SWITCH |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN RELAY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FUEL OPN FUSE |
| *5 | TRUNK AND FUEL SWITCH ASSEMBLY | - | - |
