Lexus ES: Installation

Lexus ES (XZ10) Service Manual / Vehicle Interior / Wiper / Washer / Washer Nozzle / Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL WASHER NOZZLE SUB-ASSEMBLY

(a) Connect a new washer nozzle sub-assembly to the washer hose.

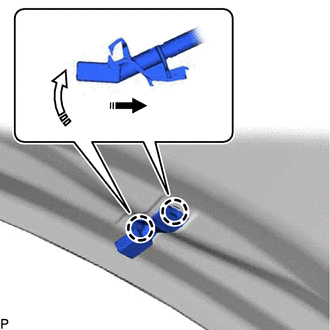

(b) Engage the 2 claws as indicated by the arrows, in the order shown in the illustration to install the washer nozzle sub-assembly.

Install in this Direction (1)

Install in this Direction (2)

2. INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click here

3. ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click here
