PARTS LOCATION
ILLUSTRATION

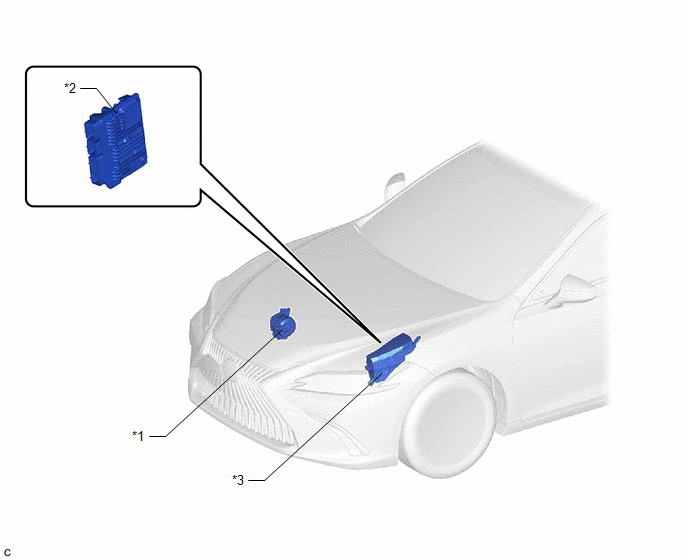

| *1 | GENERATOR ASSEMBLY | *2 | ECM |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY | - | - |
ILLUSTRATION

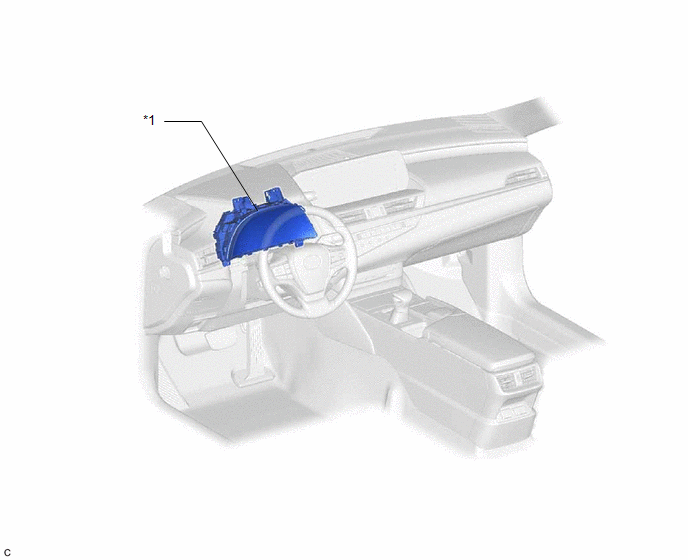

| *1 | COMBINATION METER ASSEMBLY | - | - |
