Lexus ES (XZ10) Service Manual / Power Source & Network / A25a-fks (battery / Charging) / Battery

Components

COMPONENTS

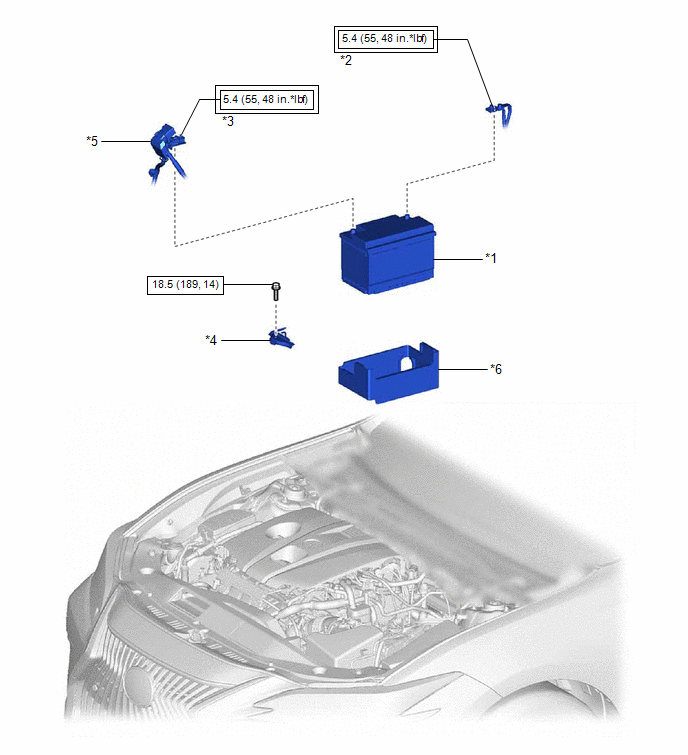

ILLUSTRATION

*1

BATTERY

*2

NEGATIVE BATTERY TERMINAL

*3

POSITIVE BATTERY TERMINAL

*4

NO. 2 BATTERY CLAMP

*5

BATTERY TERMINAL CAP

*6

BATTERY INSULATOR

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque
