Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY (for Moon Roof)

(a) When reusing the telephone and GPS antenna assembly:

(1) Install a new seal.

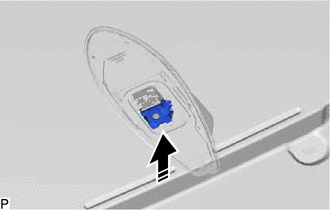

(b) Push the telephone and GPS antenna assembly in the direction indicated by the arrow (1) shown in the illustration to engage the guide.

Install in this Direction (1)

Install in this Direction (2)

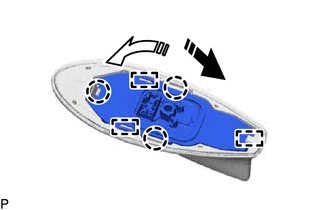

(c) Push the telephone and GPS antenna assembly in the direction indicated by the arrow (2) shown in the illustration to engage the 2 guides and 3 claws and install the telephone and GPS antenna assembly.

2. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY WITH COVER (for Moon Roof)

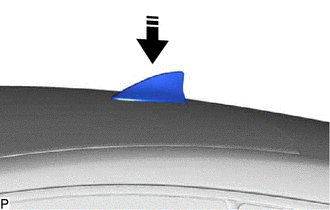

(a) Temporarily install the telephone and GPS antenna assembly with cover as shown in the illustration.

Install in this Direction

(b) Install a new washer and holder as shown in the illustration.

Install in this Direction

(c) Install the telephone and GPS antenna assembly with cover with the bolt.

Torque:

9.5 N·m {97 kgf·cm, 84 in·lbf}

(d) Connect the connector.

3. INSTALL TELEPHONE AND GPS ANTENNA ASSEMBLY (for Panoramic Moon Roof)

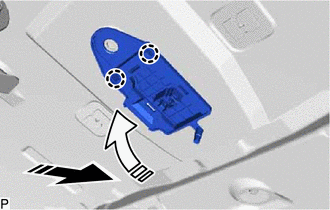

(a) Engage the 2 claws to temporarily install the telephone and GPS antenna assembly as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

(b) Install the clip.

(c) Install the telephone and GPS antenna assembly with the nut.

Torque:

16.5 N·m {168 kgf·cm, 12 ft·lbf}

(d) Connect the connector.

4. INSTALL ROOF HEADLINING ASSEMBLY

Click here
