Lexus ES: Installation

INSTALLATION

PROCEDURE

1. INSTALL DCM (TELEMATICS TRANSCEIVER)

2. INSTALL NO. 1 TELEPHONE BRACKET

(a) Install the No. 1 telephone bracket with the screw.

3. INSTALL TELEPHONE BRACKET

(a) Install the telephone bracket with the screw.

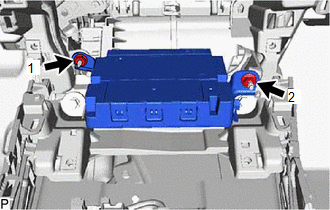

4. INSTALL DCM (TELEMATICS TRANSCEIVER) WITH BRACKET

(a) Connect each connector.

(b) Install the DCM (telematics transceiver) with bracket with the 2 nuts.

Torque:

5.5 N·m {56 kgf·cm, 49 in·lbf}

HINT:

Install the nuts in the order shown in the illustration.

5. INSTALL RADIO RECEIVER ASSEMBLY WITH SWITCH

Click here

6. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

7. INSTALL LOWER INSTRUMENT PANEL LH

Click here

8. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

9. INSTALL INSTRUMENT SIDE PANEL RH

Click here

10. INSTALL FRONT DOOR OPENING TRIM COVER RH

HINT:

Use the same procedure as for the LH side.

Click here

11. INSTALL COWL SIDE TRIM BOARD RH

HINT:

Use the same procedure as for the LH side.

Click here

12. INSTALL FRONT DOOR SCUFF PLATE RH

HINT:

Use the same procedure as for the LH side.

Click here

13. INSTALL LOWER INSTRUMENT PANEL

Click here

14. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

15. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

UB80F:

Click here

17. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

18. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

Click here

19. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

Click here

20. PERFORM DCM ACTIVATION

HINT:

After replacing the DCM (telematics transceiver), make sure to perform DCM activation.

for HV Model: Click here

for Gasoline Model: Click here

21. PERFORM REGISTRATION

*: for Lexus Enform Remote Compatible Type

HINT:

After replacing the DCM (telematics transceiver), make sure to perform code registration (Smart access system with push-button start (for Start Function)).

for HV Model: Click here

for Gasoline Model: Click here
