Lexus ES: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during DCM (telematics transceiver) removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| *: for Lexus Enform Remote Compatible Type | |||
| DCM (Telematics Transceiver) | DCM activation | Safety Connect System | |
| DCM (Telematics Transceiver)* | Code registration (Smart access system with push-button start (for Start Function)) | Telematics System | |
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| *: for Lexus Enform Remote Compatible Type | |||
| DCM (Telematics Transceiver) | DCM activation | Safety Connect System | |
| DCM (Telematics Transceiver)* | Code registration (Smart access system with push-button start (for Start Function)) | Telematics System | |
PROCEDURE
1. PRECAUTION
for HV Model: Click here .gif)
for Gasoline Model: Click here
2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Click here
3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
Click here
4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Click here
5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
for UA80E:
Click here
for P710:
Click here
for UB80F:
Click here
6. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
Click here
7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
Click here
8. REMOVE LOWER INSTRUMENT PANEL
Click here
9. REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure as for the LH side.
Click here
10. REMOVE COWL SIDE TRIM BOARD RH
HINT:
Use the same procedure as for the LH side.
Click here
11. REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure as for the LH side.
Click here
12. REMOVE INSTRUMENT SIDE PANEL RH
Click here
13. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
14. REMOVE LOWER INSTRUMENT PANEL LH
Click here
15. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
Click here
16. REMOVE RADIO RECEIVER ASSEMBLY WITH SWITCH
Click here

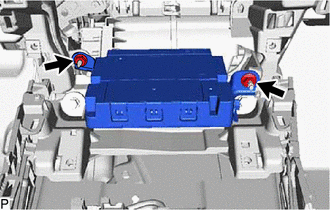

17. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
| (a) Remove the 2 nuts. |
|
.png)
(b) Disconnect each connector and remove the DCM (telematics transceiver) with bracket.

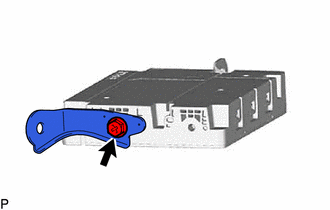

18. REMOVE TELEPHONE BRACKET
| (a) Remove the screw and telephone bracket. |
|
.png)

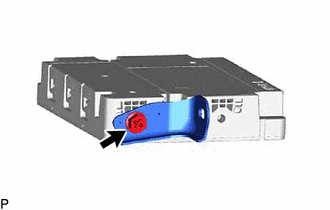

19. REMOVE NO. 1 TELEPHONE BRACKET
| (a) Remove the screw and No. 1 telephone bracket. |
|
.png)
20. REMOVE DCM (TELEMATICS TRANSCEIVER)
