Lexus ES: Installation
INSTALLATION
PROCEDURE
1. INSTALL REAR SPOILER SUB-ASSEMBLY
HINT:
When installing a new rear spoiler sub-assembly, heat the luggage compartment door panel and rear spoiler sub-assembly using a heat light.
Heating Temperature| Item | Temperature |
|---|---|
| Luggage Compartment Door Panel | 40 to 60°C (104 to 140°F) |
| Rear Spoiler Sub-assembly | 20 to 30°C (68 to 86°F) |

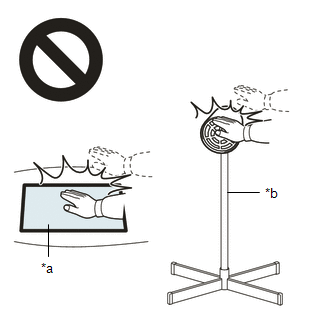

CAUTION:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
.png)
| *a | Heated Part |
| *b | Heat Light |
NOTICE:
Do not heat the luggage compartment door panel or rear spoiler sub-assembly excessively.
(a) Clean the luggage compartment door panel surface.
(1) Using a heat light, heat the luggage compartment door panel surface.
(2) Remove any double-sided tape from the luggage compartment door panel.
(3) Wipe off any tape adhesive residue with cleaner.
(b) Using a brush or felt, apply primer or equivalent to the installation area of the rear spoiler sub-assembly on the luggage compartment door panel.
NOTICE:
- Use a clean brush or felt.
- Do not touch the luggage compartment door panel until the primer has dried.
(c) for TMMK Made
(1) Install 4 new gaskets.
(d) Remove the release paper from a new rear spoiler sub-assembly.
(e) Engage the 5 clips and attach the double-sided tape to temporarily install the rear spoiler sub-assembly.
HINT:
Press the rear spoiler sub-assembly firmly to install it.
(f) Install the rear spoiler sub-assembly with the 4 nuts.
Torque:
6.6 N·m {67 kgf·cm, 58 in·lbf}
2. INSTALL LUGGAGE COMPARTMENT DOOR COVER
Click here .gif)
3. INSTALL SWITCH BEZEL (w/ Power Trunk Lid System)
Click here
4. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE
Click here
