INSPECTION
PROCEDURE
1. INSPECT REAR DOOR ILLUMINATION LIGHT LH (REAR DOOR OUTSIDE HANDLE ASSEMBLY LH)
.png)

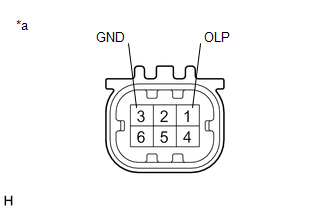

| *a | Component without harness connected (Rear Door Illumination Light LH (Rear Door Outside Handle Assembly LH)) |
(a) Connect 4 dry-cell batteries (1.5 V) in series.
NOTICE:
Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
(b) Apply 6.0 V battery voltage to the rear door illumination light LH (rear door outside handle assembly LH) and check that the light illuminates.
OK:
| Measurement Condition | Specified Condition |
|---|---|
| Positive (+) lead from the batteries → Terminal 1 (OLP) Negative (-) lead from the batteries → Terminal 3 (GND) | Illumination light illuminates |
If the result is not as specified, replace the rear door illumination light LH (rear door outside handle assembly LH).
2. INSPECT REAR DOOR ILLUMINATION LIGHT RH (REAR DOOR OUTSIDE HANDLE ASSEMBLY RH)
| *a | Component without harness connected (Rear Door Illumination Light RH (Rear Door Outside Handle Assembly RH)) |
(a) Connect 4 dry-cell batteries (1.5 V) in series.
NOTICE:
Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
(b) Apply 6.0 V battery voltage to the rear door illumination light RH (rear door outside handle assembly RH) and check that the light illuminates.
OK:
| Measurement Condition | Specified Condition |
|---|---|
| Positive (+) lead from the batteries → Terminal 1 (OLP) Negative (-) lead from the batteries → Terminal 3 (GND) | Illumination light illuminates |
If the result is not as specified, replace the rear door illumination light RH (rear door outside handle assembly RH).
