INSPECTION

PROCEDURE

1. INSPECT DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY)

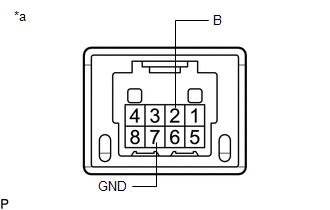

(a) Inspect the "Normal" mode switch:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

2 (B) - 7 (GND)

"Normal" mode switch being pushed and held

Below 1 Ω

"Normal" mode switch not pushed

10 kΩ or higher

If the result is not as specified, replace the drive mode select switch (combination switch assembly).

*a

Component without harness connected

(Drive Mode Select Switch (Combination Switch Assembly))

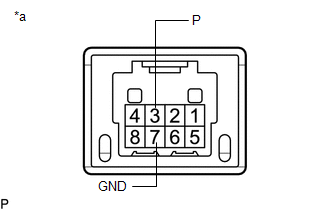

(b) Inspect the "Sport" mode switch:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

3 (P) - 7 (GND)

Combination switch assembly knob turned and held at "Sport" position

Below 1 Ω

Combination switch assembly knob not turned to "Sport" position

10 kΩ or higher

If the result is not as specified, replace the drive mode select switch (combination switch assembly).

*a

Component without harness connected

(Drive Mode Select Switch (Combination Switch Assembly))

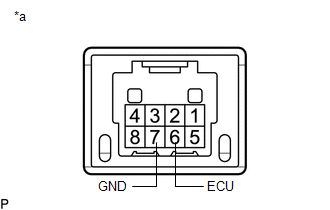

(c) Inspect the "Eco" mode switch:

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

6 (ECU) - 7 (GND)

Combination switch assembly knob turned and held at "Eco" position

Below 1 Ω

Combination switch assembly knob not turned to "Eco" position

10 kΩ or higher

If the result is not as specified, replace the drive mode select switch (combination switch assembly).

*a

Component without harness connected

(Drive Mode Select Switch (Combination Switch Assembly))

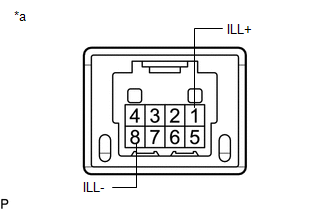

(d) Inspect the illumination:

(1) Apply battery voltage to the drive mode select switch (combination switch assembly) and check that the switch illuminates.

OK:

Condition

Specified Condition

Battery positive (+) → Terminal 1 (ILL+)

Battery negative (-) → Terminal 8 (ILL-)

Illuminates

If the result is not as specified, replace the drive mode select switch (combination switch assembly).

*a

Component without harness connected

(Drive Mode Select Switch (Combination Switch Assembly))
