FAIL-SAFE CHART

FAIL-SAFE FUNCTION

(a) When a malfunction occurs in the tire pressure warning system, the tire pressure warning light illuminates after blinking for 1 minute to inform the driver of the system failure.

(b) As a result of this, tire pressure monitoring is disabled and a DTC is stored in the tire pressure warning ECU and receiver.

(c) When there is a system malfunction, the value of each related tire is not displayed.

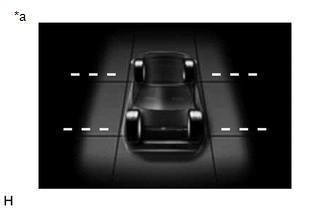

*a

Example
