Lexus ES: Disposal
DISPOSAL
PROCEDURE
1. DISPOSE OF REAR SHOCK ABSORBER ASSEMBLY

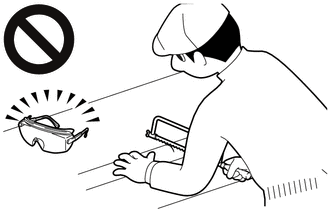

CAUTION:
- Always use a cloth to prevent shards of metal from flying about due to the release of pressurized gas.
- Always wear safety glasses.
.png)
HINT:
The gas is colorless, odorless and non-poisonous.
| (a) Extend the piston rod and secure the rear shock absorber assembly at an angle in a vise. |
|

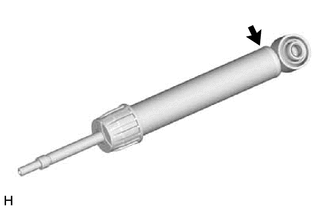

(b) Using a hacksaw, slowly make a hole at the position indicated by the arrow in the illustration to discharge the gas inside.
