Lexus ES: Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE SHIFT POSITION INDICATOR

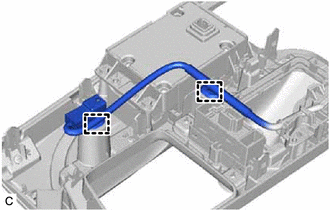

| (a) Disengage the 2 clamps to disconnect the wire harness. |
|
.png)

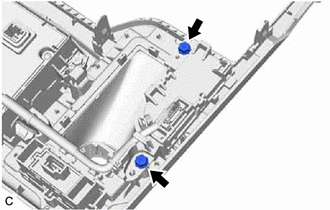

| (b) Remove the 2 screws. |
|
.png)

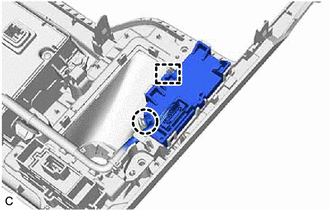

| (c) Disengage the claw and guide and remove the shift position indicator from the rear upper console panel sub-assembly. |
|
.png)
2. REMOVE LOWER POSITION INDICATOR HOUSING

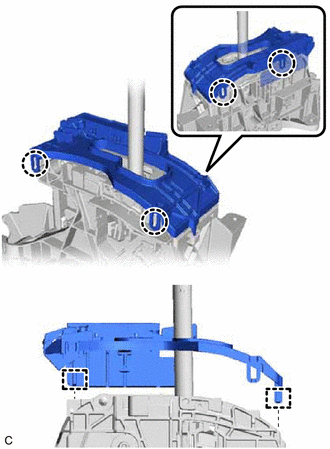

| (a) Disengage the 4 claws and 2 guides to remove the lower position indicator housing from the shift lock control unit assembly. NOTICE: Do not damage the lower position indicator housing. |
|
.png)
