Lexus ES: Differential Oil Seal (for Rh Side)
Lexus ES (XZ10) Service Manual / Drivetrain / Ub80f (automatic Transmission / Transaxle) / Differential Oil Seal (for Rh Side)
Components
COMPONENTS

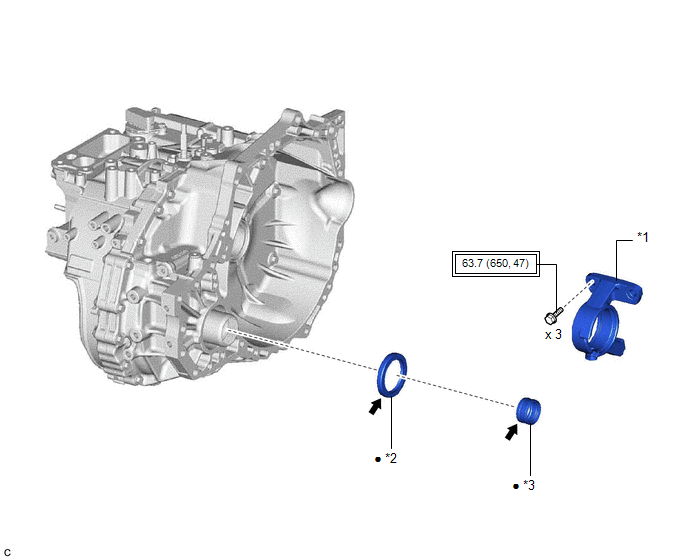

ILLUSTRATION
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | DIFFERENTIAL SIDE OIL SEAL |
| *3 | FRONT DRIVE SHAFT OIL SEAL RH | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
.png) | MP grease | - | - |
