Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

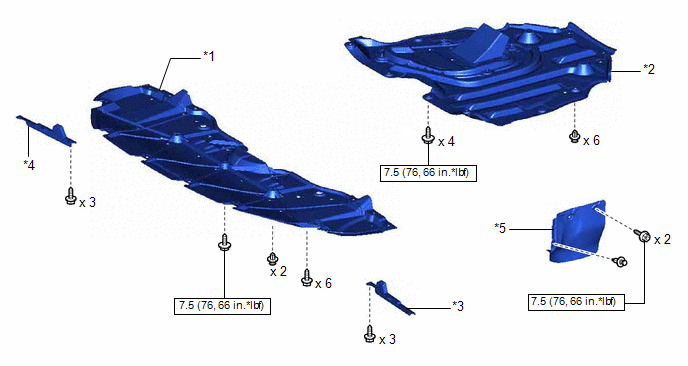

| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | FRONT FENDER APRON SEAL LH | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

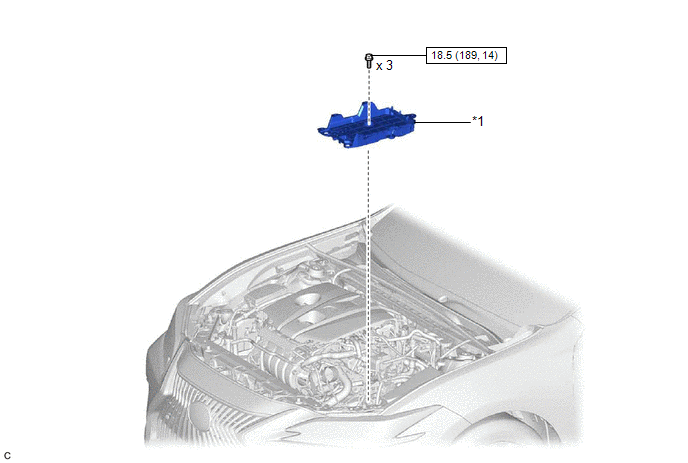

| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

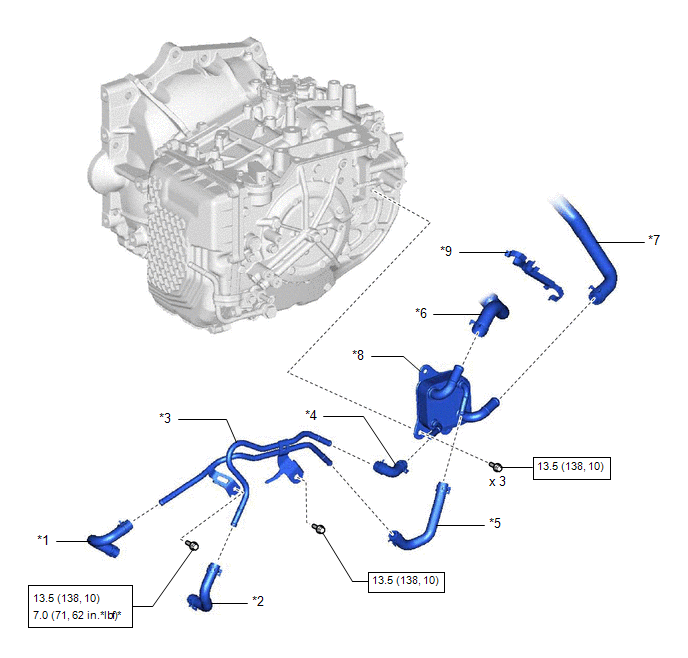

| *1 | OUTLET NO. 1 OIL COOLER HOSE | *2 | INLET NO. 1 OIL COOLER HOSE |
| *3 | NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE | *4 | INLET NO. 2 OIL COOLER HOSE |
| *5 | OUTLET NO. 2 OIL COOLER HOSE | *6 | NO. 1 WATER BY-PASS HOSE |
| *7 | WATER BY-PASS HOSE ASSEMBLY | *8 | TRANSMISSION OIL COOLER |
| *9 | TRANSMISSION BREATHER CLAMP | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
