Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Switch Housing / Components

COMPONENTS

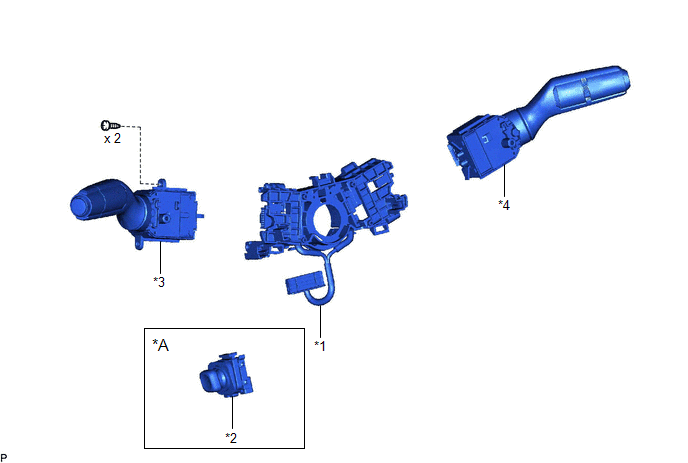

ILLUSTRATION

*A

for Power Tilt and Power Telescopic Steering Column

-

-

*1

STEERING WHEEL SWITCH HOUSING

*2

TILT AND TELESCOPIC SWITCH

*3

TURN SIGNAL SWITCH

*4

WINDSHIELD WIPER SWITCH ASSEMBLY
