Lexus ES: Components
COMPONENTS

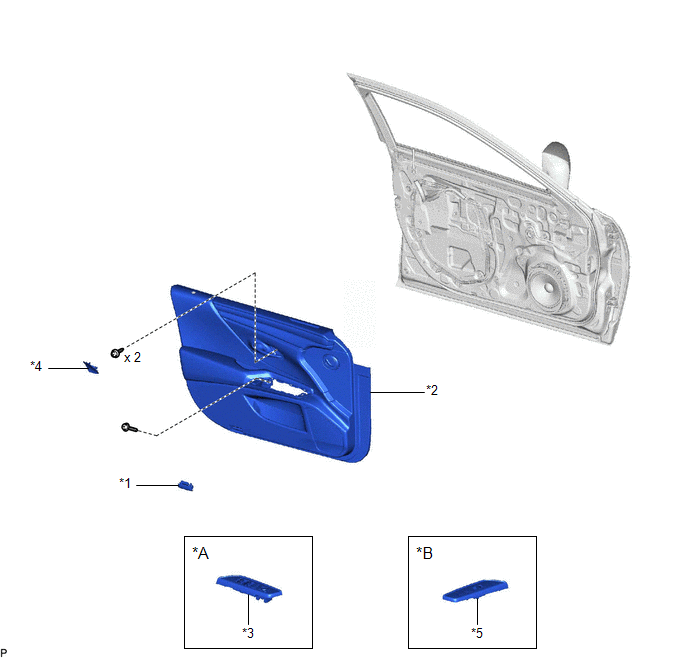

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
| *3 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *4 | NO. 2 DOOR TRIM PAD |
| *5 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | - | - |

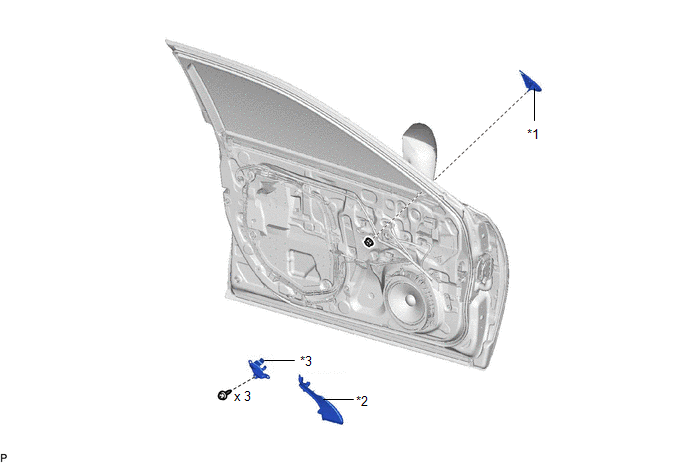

ILLUSTRATION
| *1 | FRONT DOOR FRONT LOWER FRAME UPPER COVER | *2 | FRONT DOOR LOWER FRAME BRACKET GARNISH |
| *3 | FRONT DOOR TRIM BRACKET | - | - |
