Lexus ES: Components

COMPONENTS

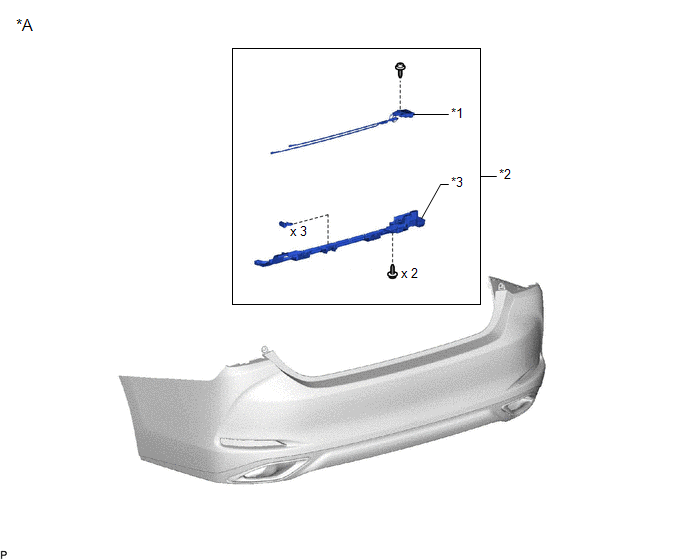

ILLUSTRATION

*A

except 2GR-FKS

-

-

*1

KICK DOOR CONTROL SENSOR

*2

KICK DOOR CONTROL SENSOR WITH BRACKET

*3

KICK DOOR CONTROL BRACKET

-

-

ILLUSTRATION

*A

for 2GR-FKS

-

-

*1

KICK DOOR CONTROL SENSOR

*2

KICK DOOR CONTROL SENSOR WITH BRACKET

*3

KICK DOOR CONTROL BRACKET

-

-
