Lexus ES: Components

COMPONENTS

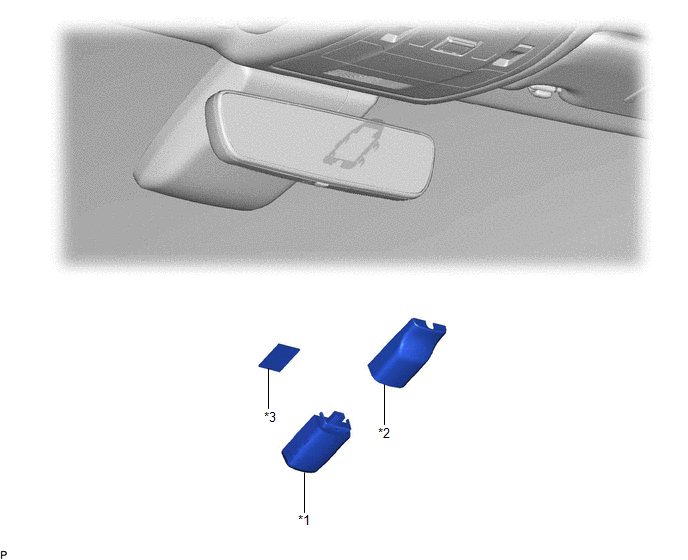

ILLUSTRATION

*1

RAIN SENSOR

*2

RAIN SENSOR COVER

*3

RAIN SENSOR TAPE

-

-

READ NEXT:

 On-vehicle Inspection

ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT RAIN SENSOR (a) Disconnect the rain sensor connector. *a Front view of wire harness connector (to Rain Sensor) (b) Measure the vol

 Removal

REMOVAL PROCEDURE 1. REMOVE RAIN SENSOR COVER *a Stopper Remove in this Direction (1) Remove in this Direction (2) (a) Release the stopper by pulling it out and disconnect the r

 Installation

INSTALLATION PROCEDURE 1. INSTALL RAIN SENSOR TAPE HINT: The rain sensor tape is reusable. Only replace the tape if it is damaged or contaminated with foreign matter. (a) Clean the sensing portion of
