Lexus ES: Components
Lexus ES (XZ10) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Rear Spoiler / Components
COMPONENTS

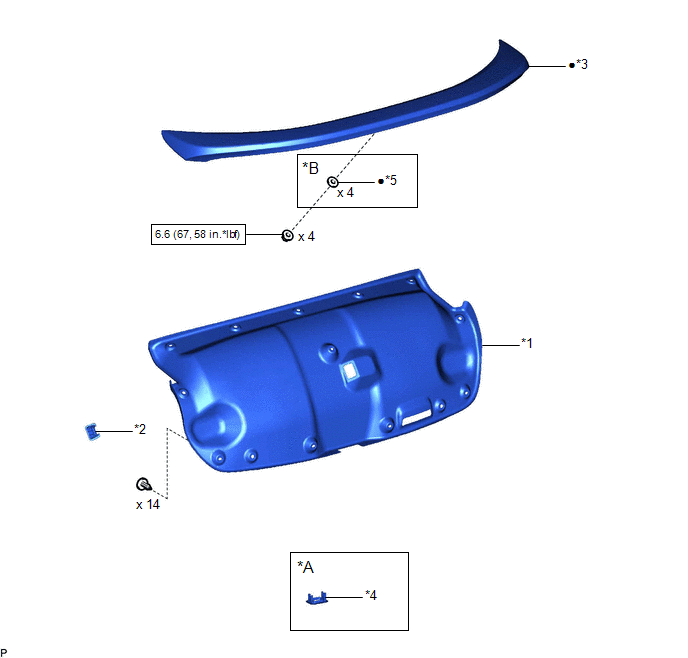

ILLUSTRATION
| *A | w/ Power Trunk Lid System | *B | for TMMK Made |
| *1 | LUGGAGE COMPARTMENT DOOR COVER | *2 | LUGGAGE LOCK CONTROL CABLE PLATE |
| *3 | REAR SPOILER SUB-ASSEMBLY | *4 | SWITCH BEZEL |
| *5 | GASKET | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
READ NEXT:
Removal
REMOVAL PROCEDURE 1. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE Click here 2. REMOVE SWITCH BEZEL (w/ Power Trunk Lid System) Click here 3. REMOVE LUGGAGE COMPARTMENT DOOR COVER Click here 4. REMOV
Installation
INSTALLATION PROCEDURE 1. INSTALL REAR SPOILER SUB-ASSEMBLY HINT: When installing a new rear spoiler sub-assembly, heat the luggage compartment door panel and rear spoiler sub-assembly using a heat li
