Lexus ES: Components
COMPONENTS

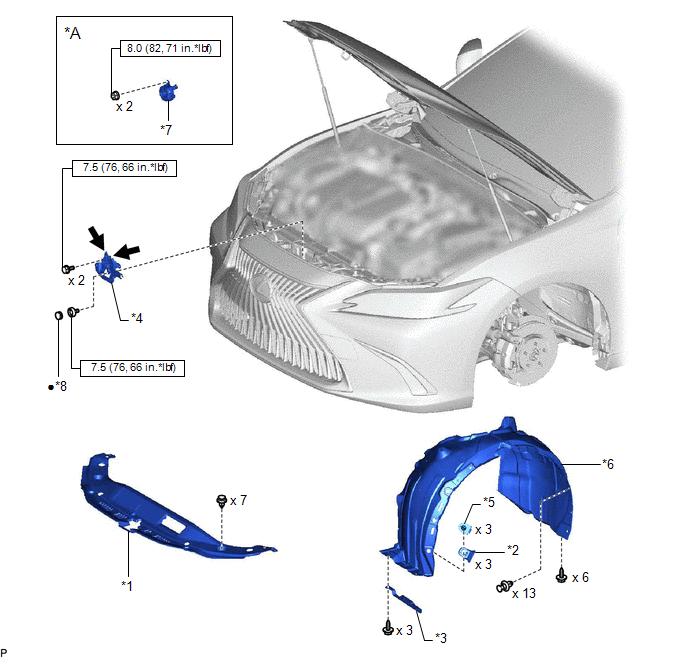

ILLUSTRATION
| *A | for HV Model | - | - |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | FRONT FENDER LINER RETAINER |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | HOOD LOCK ASSEMBLY |
| *5 | PIN HOLD CLIP | *6 | REAR FENDER SPLASH SHIELD SUB-ASSEMBLY LH |
| *7 | VEHICLE APPROACHING SPEAKER ASSEMBLY | *8 | HOOD LOCK NUT CAP |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
.png) | MP grease | - | - |

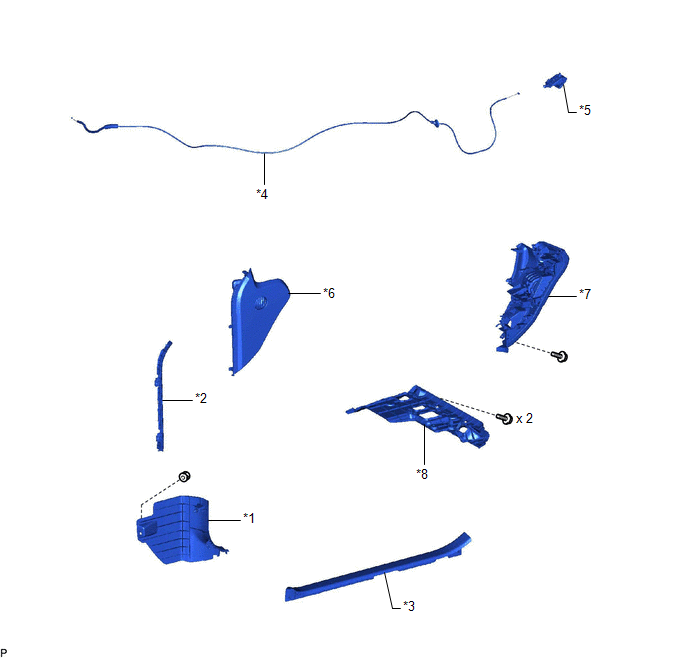

ILLUSTRATION
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR OPENING TRIM COVER LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *5 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *6 | INSTRUMENT SIDE PANEL LH |
| *7 | LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
