Lexus ES: Components
COMPONENTS

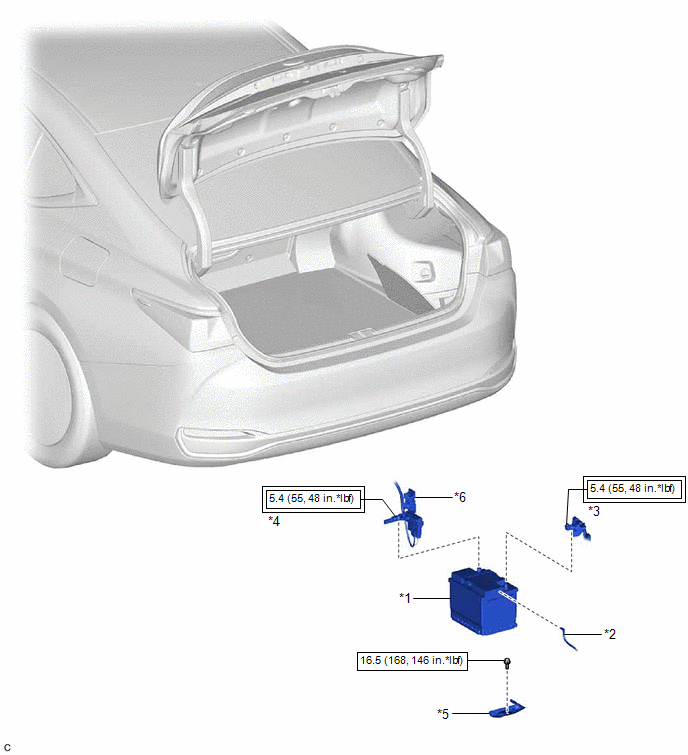

ILLUSTRATION
| *1 | AUXILIARY BATTERY | *2 | BATTERY HOSE |
| *3 | NEGATIVE AUXILIARY BATTERY TERMINAL | *4 | POSITIVE AUXILIARY BATTERY TERMINAL |
| *5 | NO. 3 BATTERY CLAMP | *6 | TERMINAL CONNECTOR COVER |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
