Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (fuel) / Fuel Pump Ecu / Components
COMPONENTS

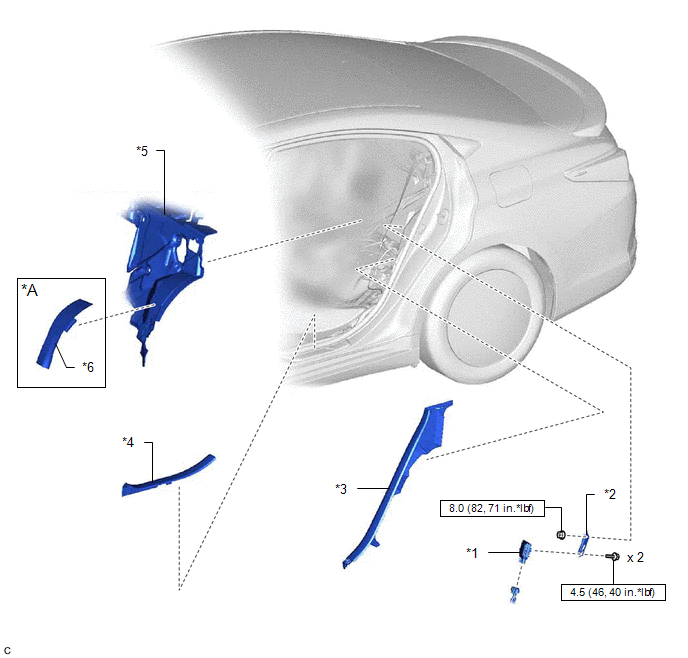

ILLUSTRATION
| *A | w/ Silencer Sheet | - | - |
| *1 | FUEL PUMP CONTROL ECU | *2 | FUEL PUMP CONTROL ECU BRACKET |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | REAR DOOR SCUFF PLATE LH |
| *5 | ROOM PARTITION PANEL INSULATOR | *6 | NO. 2 ROOM PARTITION PANEL SILENCER SHEET |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
