Lexus ES: Components
COMPONENTS

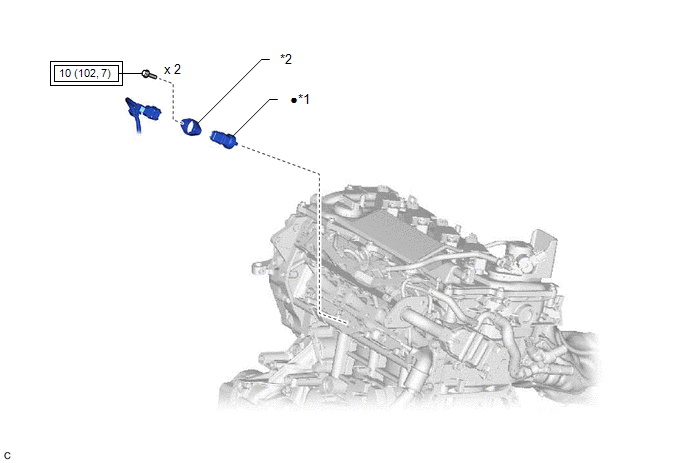

ILLUSTRATION
| *1 | FUEL PRESSURE SENSOR | *2 | NO. 1 FUEL PRESSURE SENSOR HOLDER |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
