Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (engine Mechanical) / Rear Crankshaft Oil Seal / Components

COMPONENTS

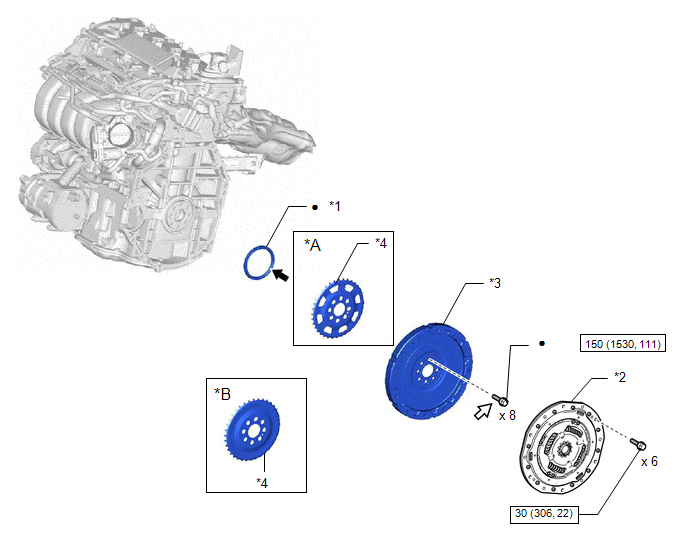

ILLUSTRATION

*A

Type A

*B

Type B

*1

REAR ENGINE OIL SEAL

*2

TRANSMISSION INPUT DAMPER ASSEMBLY

*3

FLYWHEEL SUB-ASSEMBLY

*4

NO. 1 CRANKSHAFT POSITION SENSOR PLATE

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

Adhesive 1324

★

Precoated part

-

-
