Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (fuel) / Fuel Pump Ecu / Components
COMPONENTS

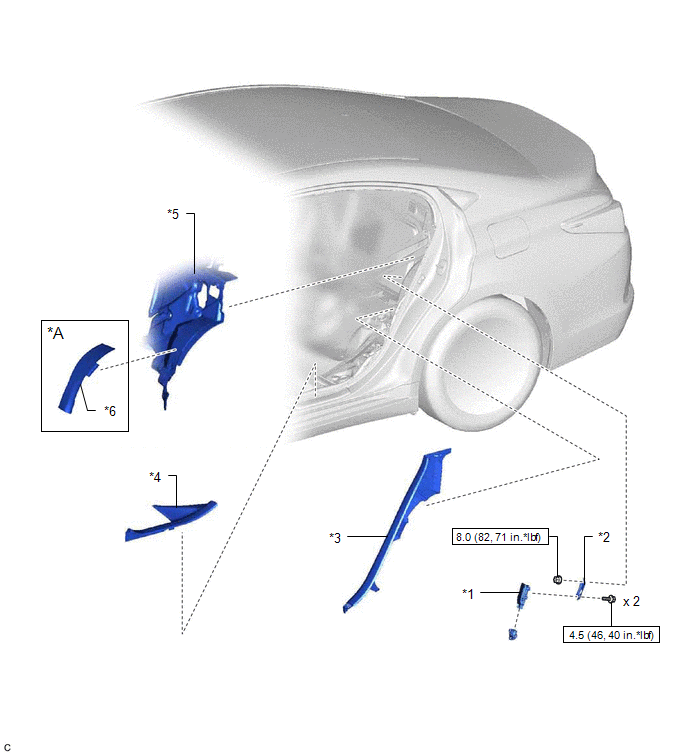

ILLUSTRATION
| *A | w/ Silencer Sheet | - | - |
| *1 | FUEL PUMP CONTROL ECU | *2 | FUEL PUMP CONTROL ECU BRACKET |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | REAR DOOR SCUFF PLATE LH |
| *5 | ROOM PARTITION PANEL INSULATOR | *6 | NO. 2 ROOM PARTITION PANEL SILENCER SHEET |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel
Installation
INSTALLATION PROCEDURE 1. INSTALL FUEL PUMP CONTROL ECU BRACKET (a) Install the fuel pump control ECU bracket to the fuel pump control ECU with the 2 bolts. Torque: 4.5 N·m {46 kgf·cm, 40 in·lbf}
