Lexus ES: Components
COMPONENTS

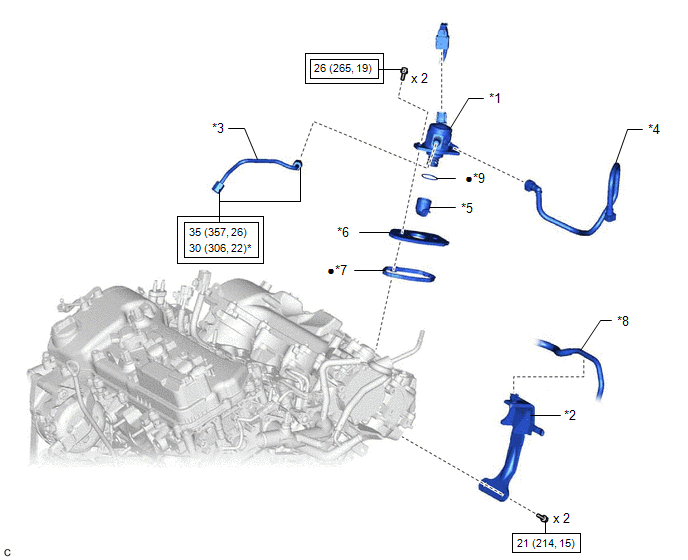

ILLUSTRATION
| *1 | FUEL PUMP ASSEMBLY | *2 | FUEL PUMP PROTECTOR |
| *3 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *4 | NO. 2 FUEL TUBE SUB-ASSEMBLY |
| *5 | FUEL PUMP LIFTER ASSEMBLY | *6 | FUEL PUMP LIFTER GUIDE |
| *7 | FUEL PUMP SPACER GASKET | *8 | FUEL TUBE SUB-ASSEMBLY |
| *9 | O-RING | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | ● | Non-reusable part |
