Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (engine Control) / Ignition Coil And Spark Plug / Components

COMPONENTS

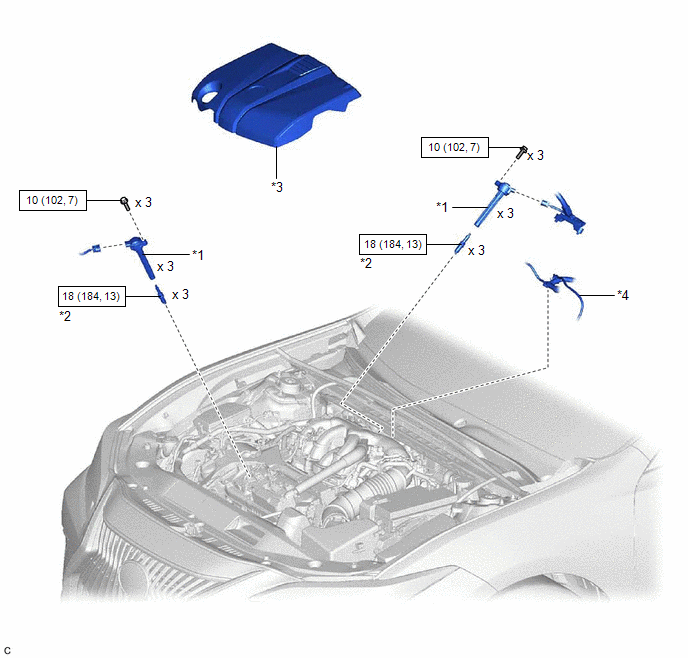

ILLUSTRATION

*1

IGNITION COIL ASSEMBLY

*2

SPARK PLUG

*3

V-BANK COVER SUB-ASSEMBLY

*4

VACUUM HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
