Lexus ES: Components
COMPONENTS
ILLUSTRATION
.png)

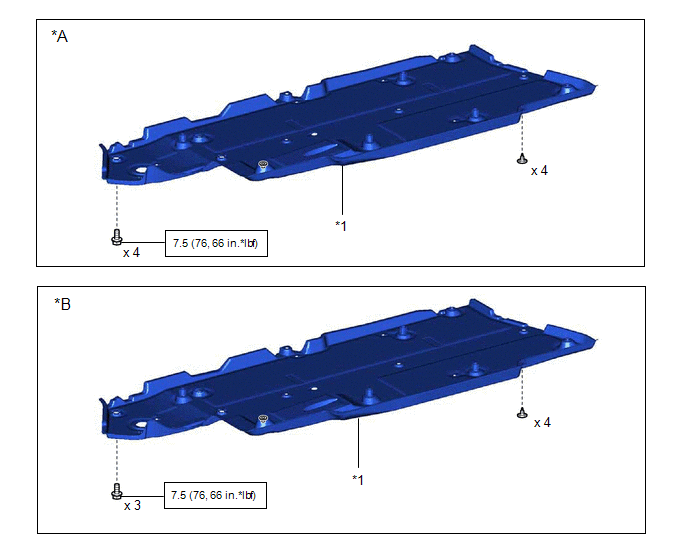

| *A | Type A | *B | Type B |
| *1 | FRONT FLOOR COVER RH | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
.png)
| *A | Type A | *B | Type B |

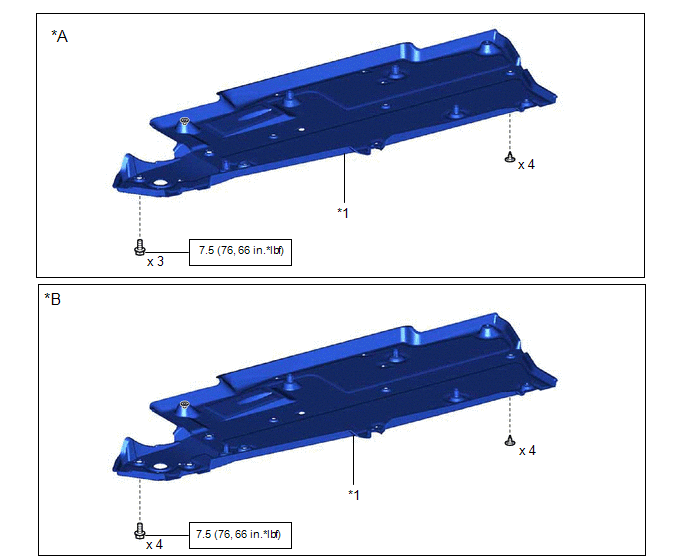

| *1 | FRONT FLOOR COVER LH | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | Type A | *B | Type B |

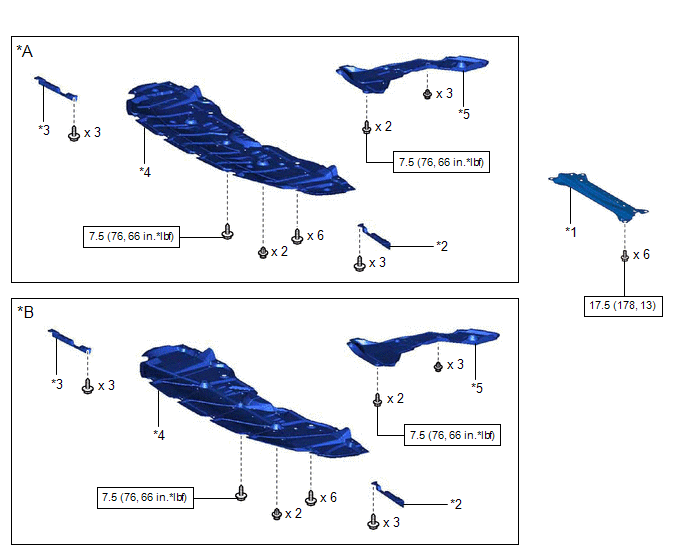

| *1 | BODY MOUNTING PLATE | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | FRONT WHEEL OPENING EXTENSION PAD RH | *4 | NO. 1 ENGINE UNDER COVER |
| *5 | NO. 2 ENGINE UNDER COVER | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

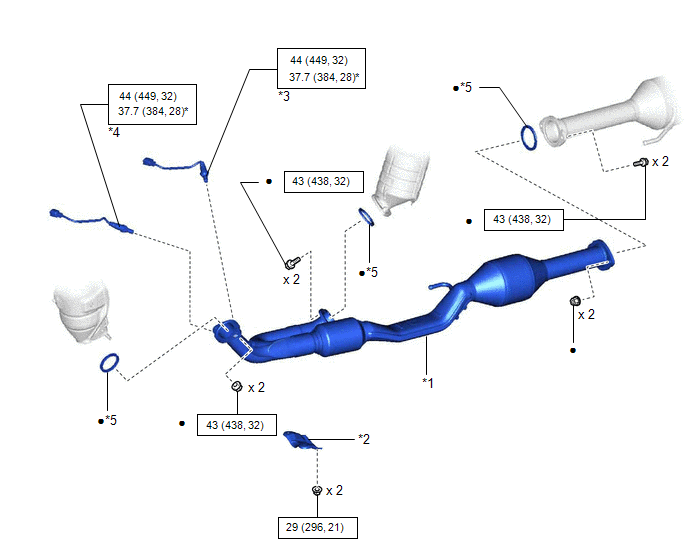

| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) |
| *3 | HEATED OXYGEN SENSOR (for Bank 2) | *4 | HEATED OXYGEN SENSOR (for Bank 1) |
| *5 | GASKET | - | - |
| | N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |
