Lexus ES: Components
COMPONENTS

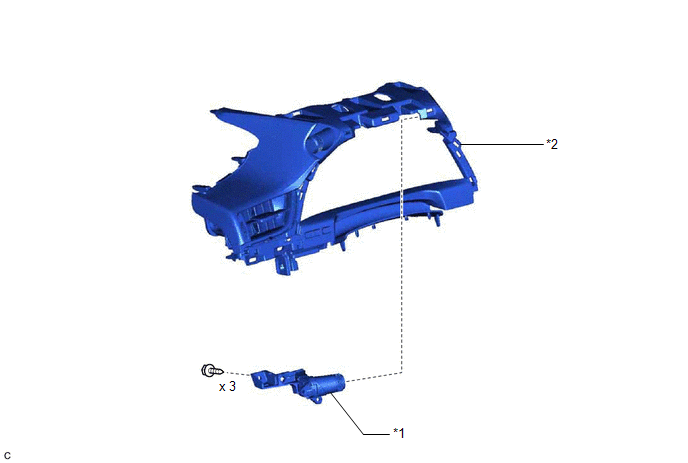

ILLUSTRATION
.png)
| *1 | DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) | *2 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
READ NEXT:
Inspection
INSPECTION PROCEDURE 1. INSPECT DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) (a) Inspect the "Normal" mode switch: (1) Measure the resistance according to the value(s) in the table below.
Installation
INSTALLATION PROCEDURE 1. INSTALL DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) (a) Install the drive mode select switch (combination switch assembly) to the instrument cluster finish panel a
Removal
REMOVAL PROCEDURE 1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Click here 2. REMOVE DRIVE MODE SELECT SWITCH (COMBINATION SWITCH ASSEMBLY) (a) Disconnect the drive mode select switch (comb
