Lexus ES: Components
Lexus ES (XZ10) Service Manual / Drivetrain / Axle And Differential / Rear Axle Hub (for 2wd) / Components
COMPONENTS

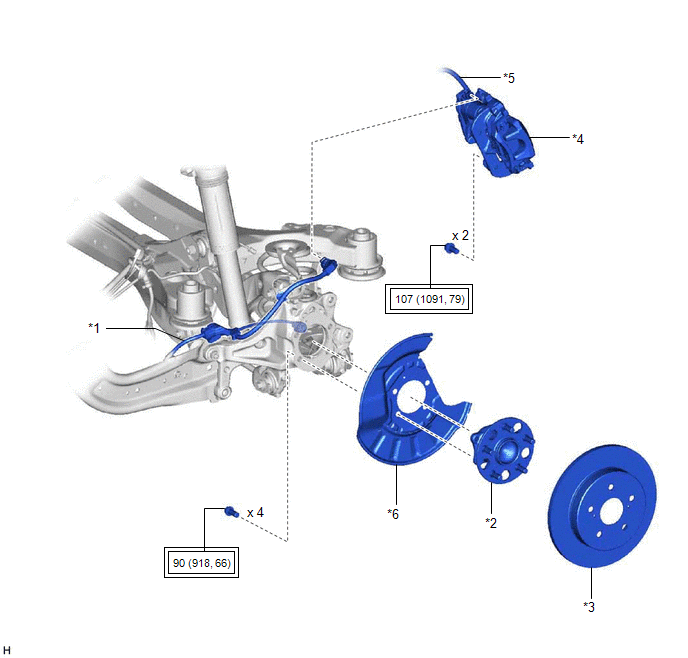

ILLUSTRATION
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR DISC | *4 | REAR DISC BRAKE CALIPER ASSEMBLY |
| *5 | REAR FLEXIBLE HOSE | *6 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
