COMPONENTS

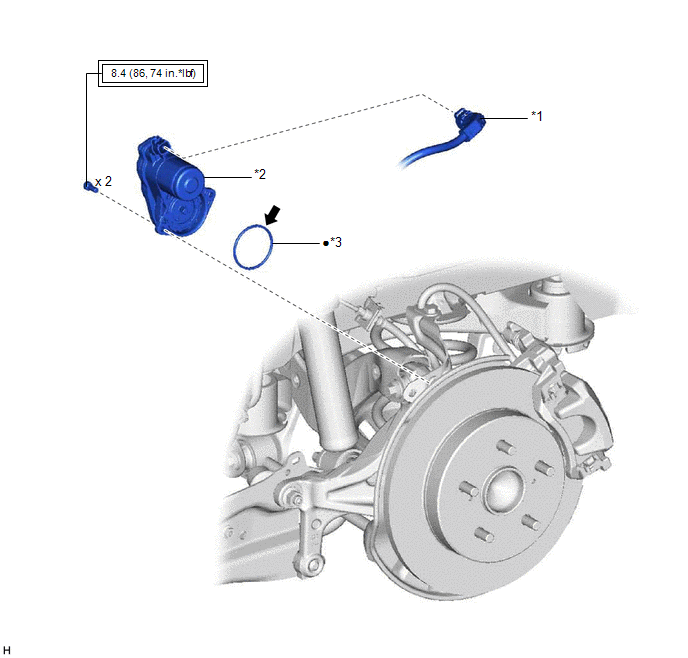

ILLUSTRATION
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | PARKING BRAKE ACTUATOR ASSEMBLY |
| *3 | O-RING | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
.png) | Lithium soap base glycol grease | - | - |
