Lexus ES (XZ10) Service Manual / Brake / Brake System (other) / Brake Fluid (for Gasoline Model) / Components
COMPONENTS
ILLUSTRATION

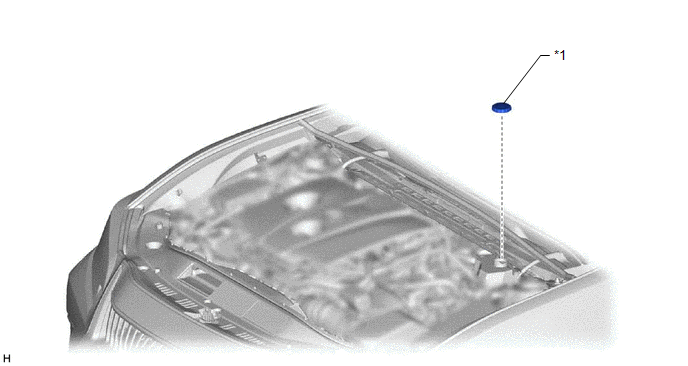

| *1 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY | - | - |
ILLUSTRATION

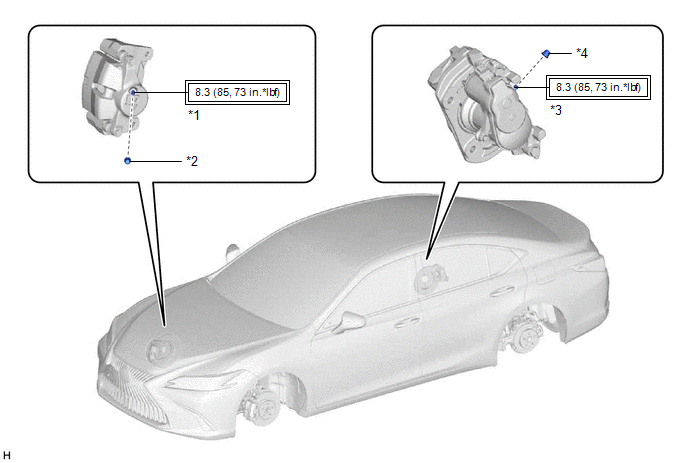

| *1 | FRONT DISC BRAKE BLEEDER PLUG | *2 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *3 | REAR DISC BRAKE BLEEDER PLUG | *4 | REAR DISC BRAKE BLEEDER PLUG CAP |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
