Lexus ES: Components
COMPONENTS

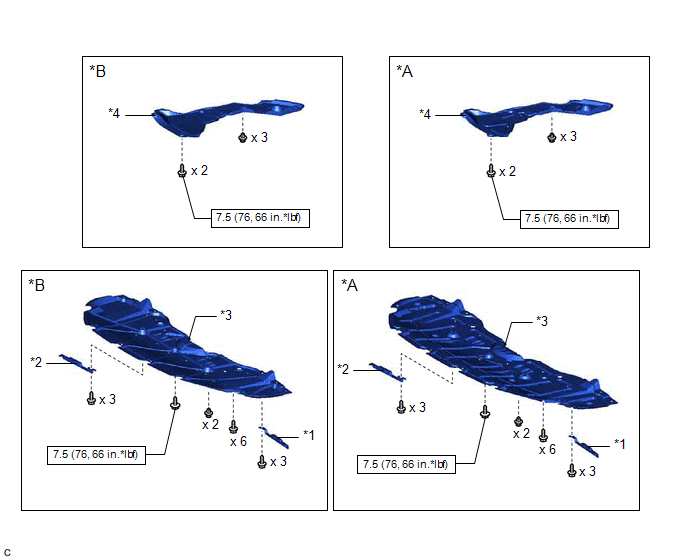

ILLUSTRATION
|
*A |
Type A |
*B |
Type B |
|
*1 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*2 |
FRONT WHEEL OPENING EXTENSION PAD RH |
|
*3 |
NO. 1 ENGINE UNDER COVER |
*4 |
NO. 2 ENGINE UNDER COVER |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
ILLUSTRATION
|

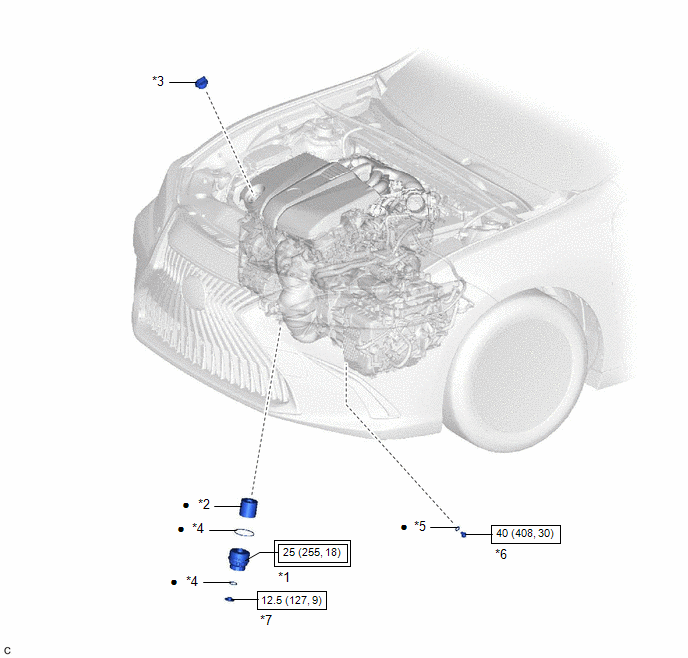

*1 |
OIL FILTER CAP ASSEMBLY |
*2 |
OIL FILTER ELEMENT |
|
*3 |
OIL FILLER CAP SUB-ASSEMBLY |
*4 |
O-RING |
|
*5 |
GASKET |
*6 |
OIL PAN DRAIN PLUG |
|
*7 |
OIL FILTER DRAIN PLUG |
- |
- |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
|
● |
Non-reusable part |
- |
- |
READ NEXT:
Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
CAUTION:
Prolonged and repeated contact with engine oil will result in the removal
of natural oils from the skin, leading to dryness, irritation and
2gr-fks Spark Plug
Components
COMPONENTS
ILLUSTRATION
*1
IGNITION COIL ASSEMBLY
*2
SPARK PLUG
*3
V-BANK COVER SUB-ASSEMBLY
*4
A25a-fks Air Cleaner Filter Element
Components
COMPONENTS
ILLUSTRATION
*1
AIR CLEANER CAP SUB-ASSEMBLY
*2
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
Removal
REMOVAL
PROCEDURE
