Lexus ES: Components
COMPONENTS

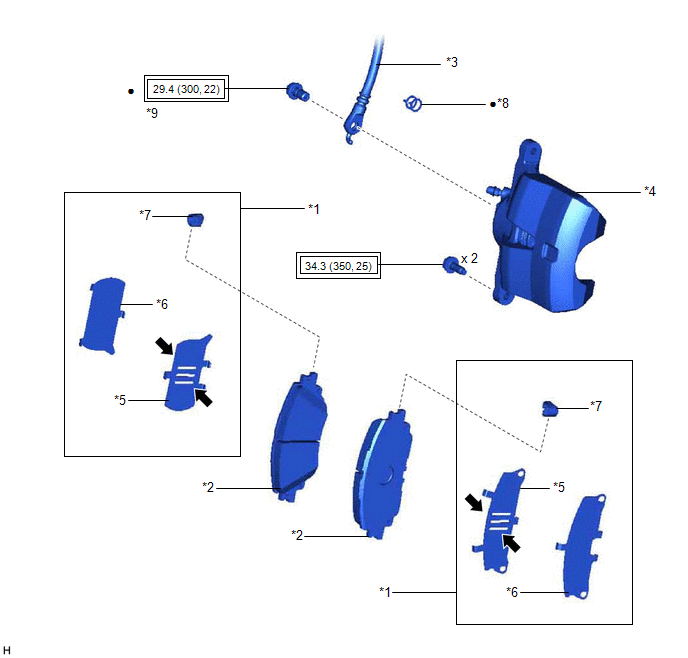

ILLUSTRATION
| *1 | FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT | *2 | FRONT DISC BRAKE PAD |
| *3 | FRONT FLEXIBLE HOSE | *4 | FRONT DISC BRAKE CYLINDER ASSEMBLY |
| *5 | FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM | *6 | FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM |
| *7 | FRONT DISC BRAKE PAD WEAR INDICATOR PLATE | *8 | GASKET |
| *9 | UNION BOLT | - | - |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 | Disc brake grease | - | - |

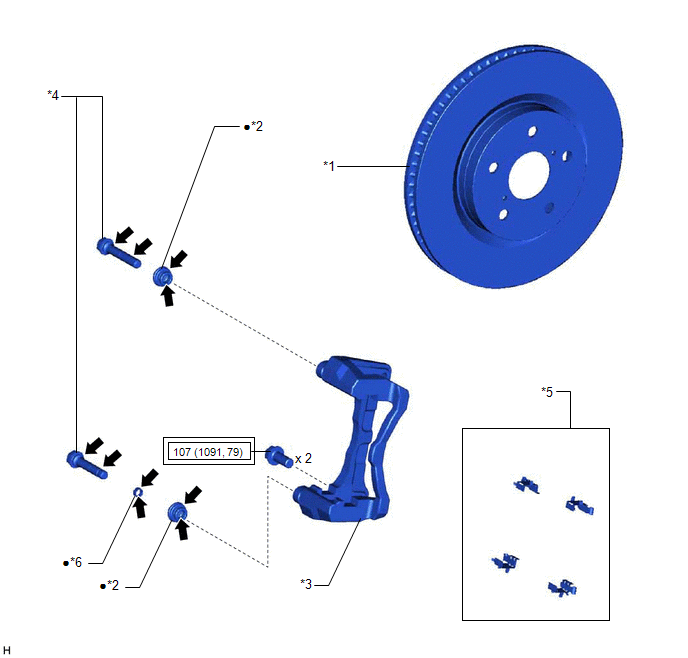

ILLUSTRATION
| *1 | FRONT DISC | *2 | FRONT DISC BRAKE BUSHING DUST BOOT |
| *3 | FRONT DISC BRAKE CYLINDER MOUNTING | *4 | FRONT DISC BRAKE CYLINDER SLIDE PIN |
| *5 | FRONT DISC BRAKE PAD SUPPORT PLATE | *6 | FRONT DISC BRAKE CYLINDER SLIDE BUSHING |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| | Lithium soap base glycol grease | - | - |

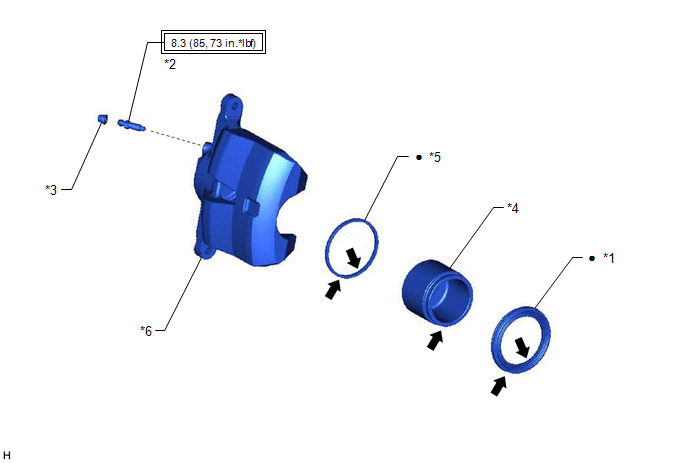

ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | FRONT DISC BRAKE BLEEDER PLUG |
| *3 | FRONT DISC BRAKE BLEEDER PLUG CAP | *4 | FRONT DISC BRAKE PISTON |
| *5 | PISTON SEAL | *6 | FRONT DISC BRAKE CYLINDER |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| | Lithium soap base glycol grease | - | - |
