Lexus ES: Components

Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Park Assist / Monitoring / Television Camera (for Side) / Components

COMPONENTS

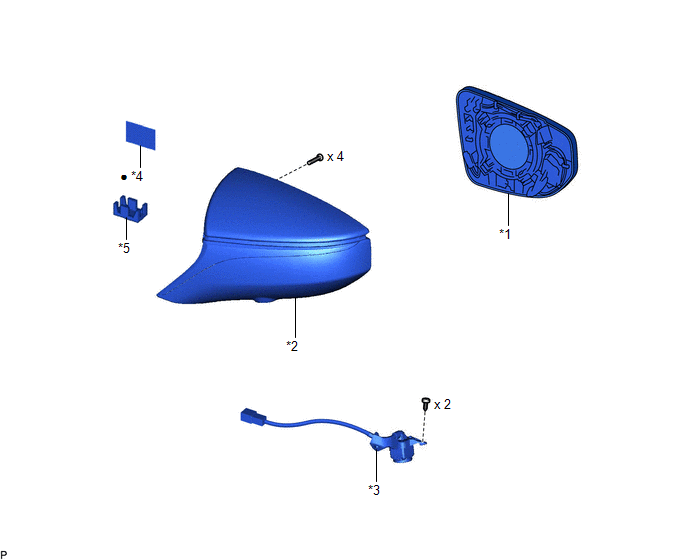

ILLUSTRATION

*1

OUTER MIRROR

*2

OUTER MIRROR COVER ASSEMBLY

*3

SIDE TELEVISION CAMERA ASSEMBLY

*4

OUTER MIRROR TAPE

*5

CAMERA CONNECTOR CLAMP

-

-

●

Non-reusable part

-

-
