Lexus ES: Automatic High Beam Camera (B124C)
Lexus ES (XZ10) Service Manual / Vehicle Interior / Lighting (ext) / Lighting System (for Gasoline Model) / Automatic High Beam Camera (B124C)
DESCRIPTION
The main body ECU (multiplex network body ECU) detects a high beam headlight illumination request signal of the automatic high beam system from the forward recognition camera.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | DTC Output from |
|---|---|---|---|---|
| B124C | Automatic High Beam Camera | Malfunction in forward recognition camera | Front camera system | Main Body |

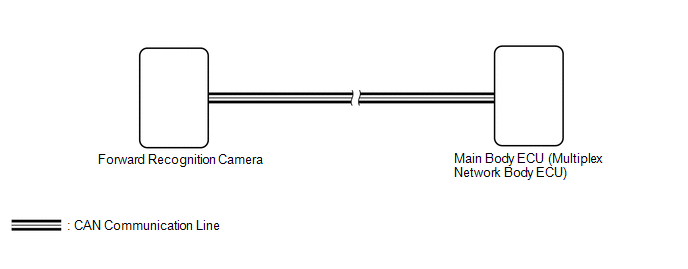

WIRING DIAGRAM
PROCEDURE
| 1. | CHECK FRONT CAMERA SYSTEM |
(a) Check front camera system.
Click here .gif)
| NEXT | .gif) | END |
