Components

COMPONENTS

ILLUSTRATION

*1

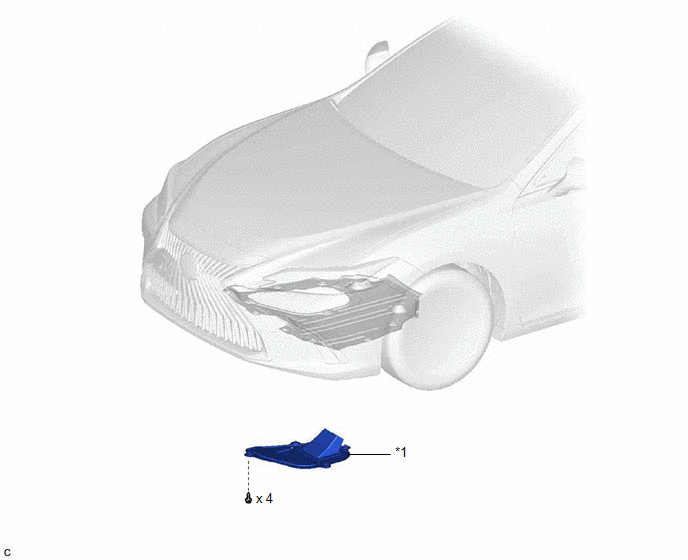

CENTER NO. 4 ENGINE UNDER COVER

-

-

ILLUSTRATION

*1

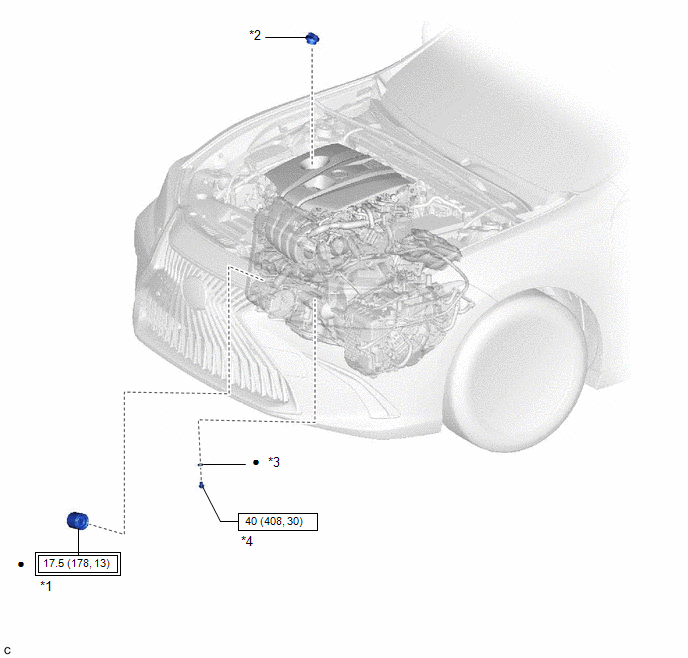

OIL FILTER SUB-ASSEMBLY

*2

OIL FILLER CAP SUB-ASSEMBLY

*3

GASKET

*4

OIL PAN DRAIN PLUG

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-
