TERMINALS OF ECU

HINT:

Check from the rear of the connector while it is connected to the components.

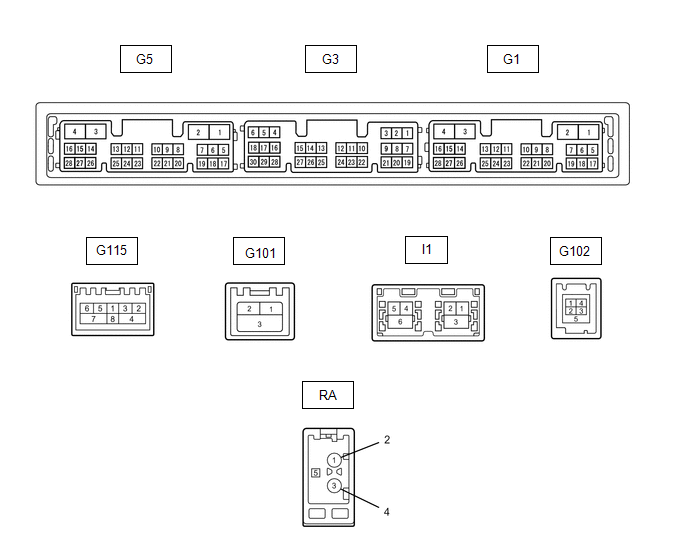

RADIO RECEIVER ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

*1: w/ Manual (SOS) Switch

*2: It is connected, but not used

*3: w/o Manual (SOS) Switch

G3-1 (VMTF) - G5-1 (GND1)

G - W-B

Visual mute signal

Engine switch on (ACC) Screen display changing

3.5 V or higher → Below 1 V → 3.5 V or higher

G3-5 (CNH1)

L

Local bus communication signal

-

-

G3-6 (CNL1)

W

Local bus communication signal

-

-

G3-13 (CANH)

B

CAN communication signal

-

-

G3-14 (CANL)

W

CAN communication signal

-

-

G3-15 (ILL+) - G5-1 (GND1)

G - W-B

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

11 to 14 V

G3-16 (ILL-) - G5-1 (GND1)

B - W-B

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

Pulse generation

G3-19 (IG) - G5-1 (GND1)

SB - W-B

Power source (IG)

Engine switch off

Below 1 V

Engine switch on (IG)

11 to 14 V

G3-21 (MIN+) - G5-1 (GND1)

P - W-B*1

W - W-B*3

Microphone voice signal

See "Microphone Check" in Operation Check

-

G3-22 (MIN-) - Body ground

L - Body ground*1

R - Body ground*3

Microphone voice signal

See "Microphone Check" in Operation Check

-

G3-23 (MACC) - G5-1 (GND1)*3

B - W-B

Microphone power supply

Engine switch off

Below 1 V

Engine switch on (ACC)

4 to 6 V

G3-24 (SGND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G3-25 (SNS2) - G5-1 (GND1)

W - W-B

Microphone connection detection signal

Always

Below 1 V

G5-1 (GND1) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G5-2 (GND2) - Body ground

LA-W - Body ground

Ground

Always

Below 1 Ω

G5-3 (+B) - G5-1 (GND1)

LA-B - W-B

Power source (+B)

Always

11 to 14 V

G5-4 (+B1) - G5-1 (GND1)

R - W-B

Power source (+B)

Always

11 to 14 V

G5-5 (TX1+)

B

AVC-LAN communication signal

-

-

G5-6 (TX1-)

W

AVC-LAN communication signal

-

-

G5-10 (AGND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G5-11 (VAL+) - G5-13 (VA-)

B - R

Sound signal (Left)

External device system playing (when No. 1 stereo jack adapter assembly used)

A waveform synchronized with sound signals is output

G5-12 (VAR+) - G5-13 (VA-)

W - R

Sound signal (Right)

External device system playing (when No. 1 stereo jack adapter assembly used)

A waveform synchronized with sound signals is output

G5-13 (VA-) - G5-1 (GND1)

R - W-B

Sound signal ground

Always

Below 1 V

G5-14 (ADPG) - G5-1 (GND1)

L - W-B

External device connection detection signal

External device connected

Below 1 V

External device not connected

1.1 to 1.9 V

G5-15 (ACC1) - G5-1 (GND1)

GR - W-B

Power source (ACC)

Engine switch off

Below 1 V

Engine switch on (ACC)

11 to 14 V

G5-16 (ACC) - G5-1 (GND1)

R - W-B

Power source (ACC)

Engine switch off

Below 1 V

Engine switch on (ACC)

11 to 14 V

G5-21 (SW1) - G5-24 (SWG)

R - BR

Steering pad switch signal

No switch pushed

2.97 to 3.56 V

Seek+ switch pushed

0.27 to 0.35 V

Seek- switch pushed

0.86 to 1.03 V

Volume+ switch pushed

1.51 to 1.79 V

Volume- switch pushed

2.22 to 2.66 V

G5-22 (SW2) - G5-24 (SWG)

G - BR

Steering pad switch signal

No switch pushed

2.97 to 3.56 V

MODE switch pushed

0.27 to 0.35 V

On/off hook switch pushed

1.51 to 1.79 V

Voice switch pushed

2.22 to 2.66 V

G5-24 (SWG) - Body ground

BR - Body ground

Steering pad switch signal

Always

Below 1 Ω

G5-27 (SPD) - G5-1 (GND1)

BE - W-B

Vehicle speed signal

See "Vehicle Signal Check Mode" in Operation Check

-

G1-7 (SUP) - G5-1 (GND1)

B - W-B

Start up signal

20 seconds elapse after turning the engine switch on (ACC)

11 to 14 V

G1-10 (USBV) - G5-1 (GND1)*1

B - W-B

DCM (telematics transceiver) power supply

Engine switch off

Below 1 V

Engine switch on (ACC)

4.75 to 5.25 V

G1-11 (USBG) - Body ground*1

G - Body ground

Ground

Always

Below 1 Ω

G1-12 (SGND) - Body ground*1

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G1-19 (RST)*2

R

-

-

-

G1-22 (SI+) - G5-1 (GND1)

R - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with sound is output

G1-23 (SI-) - G5-1 (GND1)

G - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with sound is output

G1-24 (SGND) - G5-1 (GND1)

Shielded - W-B

Shield ground

Always

Below 1 Ω

G1-25 (MCO+) - G1-26 (MCO-)

G - R

Microphone voice signal

See "Check Microphone (DCU)" in Operation Check

-

G1-26 (MCO-) - G5-1 (GND1)

R - W-B

Microphone voice signal

See "Check Microphone (DCU)" in Operation Check

-

G1-28 (REV2) - G5-1 (GND1)

W - W-B

Reverse signal

Engine running, shift position not in R → in R

2 V or less → 11 to 14 V

G101-1 (GVIF-)

-

Video signal (Digital)

-

-

G101-2 (GVIF+)

-

Video signal (Digital)

-

-

G101-3 (GND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

I1-1 (GVIF-)

-

Video signal (Digital)

-

-

I1-2 (GVIF+)

-

Video signal (Digital)

-

-

I1-3 (GND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

I1-4 (USB+)

-

USB communication line

-

-

I1-5 (USB-)

-

USB communication line

-

-

I1-6 (USBS) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G115-1 (WUO)

W

MOST communication wake-up signal

-

-

G115-2 (MI+)

-

MOST communication signal

-

-

G115-3 (MI-)

-

MOST communication signal

-

-

G115-4 (SLDI)

Shielded

Shield ground

-

-

G115-5 (MO+)

-

MOST communication signal

-

-

G115-6 (MO-)

-

MOST communication signal

-

-

G115-7 (SLDO)

Shielded

Shield ground

-

-

G102-1 (USV1)

-

Power source

-

-

G102-2 (US1-)

-

Data signal

-

-

G102-3 (US1+)

-

Data signal

-

-

G102-4 (UGD1)

-

Ground

-

-

G102-5 (USG1) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

RA-5 (ANT+) - G5-1 (GND1)

- - W-B

Power source of antenna

Engine switch on (ACC)

Radio switch on and AM or FM selected

11 to 14 V

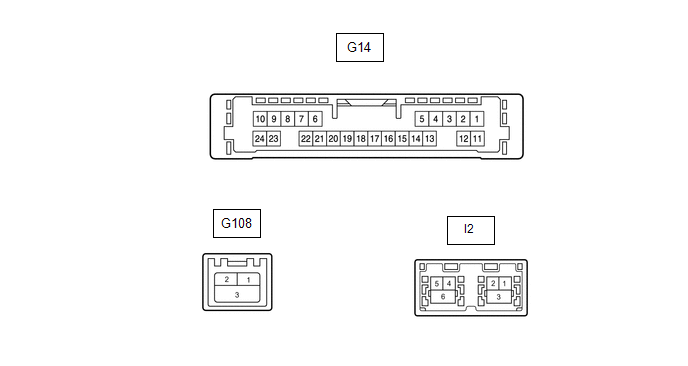

NAVIGATION ECU

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

*1: w/ Manual (SOS) Switch

*2: It is connected, but not used

G14-6 (VOI+) - G14-23 (GND)

R - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with sound is output

G14-7 (VOI-) - G14-23 (GND)

G - W-B

Voice signal

Voice guidance sounding

A waveform synchronized with sound is output

G14-8 (SLD1) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G14-9 (SPD) - G14-23 (GND)

B - W-B

Vehicle speed signal

See "Check GPS and Vehicle Sensors" in Operation Check

-

G14-10 (+B) - G14-23 (GND)

SB - W-B

Power source (+B)

Always

11 to 14 V

G14-13 (MIC+) - G14-23 (GND)

G - W-B

Microphone voice signal

See "Microphone Check (MEU)" in Operation Check

-

G14-14 (MIC-) - Body ground

R - Body ground

Microphone voice signal

See "Microphone Check (MEU)" in Operation Check

-

G14-19 (REV2) - G14-23(GND)

W - W-B

Reverse signal

Engine running, shift position not in R → in R

2 V or less → 11 to 14 V

G14-21 (SUP) - G14-23 (GND)

B - W-B

Power source (ACC)

20 seconds elapse after turning the engine switch on (ACC)

11 to 14 V

G14-22 (RST)*2

R

-

-

-

G14-23 (GND) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G108-1 (USB+)*1

-

USB communication line

-

-

G108-2 (USB-)*1

-

USB communication line

-

-

G108-3 (USBS) - Body ground*1

Shielded - Body ground

Shield ground

Always

Below 1 Ω

I2-1 (GVIF-)

-

Video signal (Digital)

-

-

I2-2 (GVIF+)

-

Video signal (Digital)

-

-

I2-3 (GND) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

I2-4 (USB+)

-

USB communication line

-

-

I2-5 (USB-)

-

USB communication line

-

-

I2-6 (USBS) - Body ground

Shielded - Body ground

Shield ground

Always

Below 1 Ω

STEREO COMPONENT AMPLIFIER ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

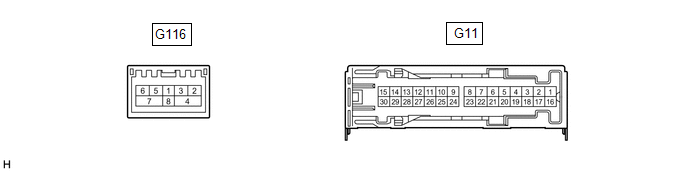

G11-1 (+B) - G11-3 (GND)*2

L - W-B

Power source (+B)

Always

11 to 14 V

G11-2 (TMUT) - Body ground*1

BE - Body ground

Mute signal

Audio system playing

3.0 to 5.0 V

Emergency call mode

Below 1 V

G11-3 (GND) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G11-4 (WFL+) - G11-3 (GND)

LG - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-5 (WFR+) - G11-3 (GND)

R - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-6 (WF1+) - G11-3 (GND)

BE - W-B

Sound signal (Woofer)

Audio system playing

A waveform synchronized with sound signals is output

G11-7 (CTR+) - G11-3 (GND)

G - W-B

Sound signal (Front Center)

Audio system playing

A waveform synchronized with sound signals is output

G11-8 (RL+) - G11-3 (GND)

B - W-B

Sound signal (Rear Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-9 (RR+) - G11-3 (GND)

P - W-B

Sound signal (Rear Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-10 (TWL+) - G11-3 (GND)*2

L - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-11 (TWR+) - G11-3 (GND)*2

L - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-12 (FL+) - G11-3 (GND)

GR - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-13 (FR+) - G11-3 (GND)

B - W-B*1

P - W-B*3

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-16 (+B2) - G11-3 (GND)

B - W-B

Power source (+B)

Always

11 to 14 V

G11-17 (SPD) - G11-3 (GND)

GR - W-B

Vehicle speed signal

Engine switch on (IG)

Wheel being rotated

Pulse generation

G11-18 (GND2) - Body ground

W-B - Body ground

Ground

Always

Below 1 Ω

G11-19 (WFL-) - G11-3 (GND)

P - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-20 (WFR-) - G11-3 (GND)

SB - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-21 (WF1-) - G11-3 (GND)

L - W-B

Sound signal (Woofer)

Audio system playing

A waveform synchronized with sound signals is output

G11-22 (CTR-) - G11-3 (GND)

W - W-B

Sound signal (Front Center)

Audio system playing

A waveform synchronized with sound signals is output

G11-23 (RL-) - G11-3 (GND)

Y - W-B

Sound signal (Rear Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-24 (RR-) - G11-3 (GND)

W - W-B

Sound signal (Rear Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-25 (TWL-) - G11-3 (GND)*2

W - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-26 (TWR-) - G11-3 (GND)*2

R - W-B

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G11-27 (FL-) - G11-3 (GND)

W - W-B

Sound signal (Front Left)

Audio system playing

A waveform synchronized with sound signals is output

G11-28 (FR-) - G11-3 (GND)

W - W-B*1

V - W-B*3

Sound signal (Front Right)

Audio system playing

A waveform synchronized with sound signals is output

G116-2 (MI+)

-

MOST communication signal

-

-

G116-3 (MI-)

-

MOST communication signal

-

-

G116-4 (SLDI)

Shielded

Shield ground

-

-

G116-5 (MO+)

-

MOST communication signal

-

-

G116-6 (MO-)

-

MOST communication signal

-

-

G116-7 (SLDO)

Shielded

Shield ground

-

-

G116-8 (WUI)

W

MOST communication wake-up signal

-

-

  • *1: w/ Manual (SOS) Switch

    *2: for 17 Speakers

    *3: w/o Manual (SOS) Switch

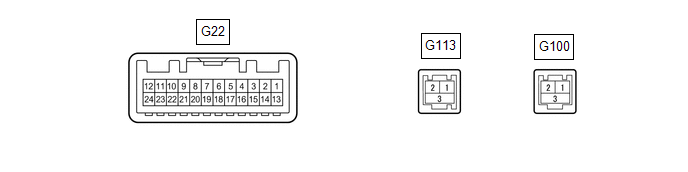

MULTI-DISPLAY ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G22-2 (ILL) - G22-13 (GND1)

LA-R - LA

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

11 to 14 V

G22-6 (TX1+)

B

AVC-LAN communication signal

-

-

G22-7 (TX+)

B

AVC-LAN communication signal

-

-

G22-8 (V+) - G22-13 (GND1)*1

B - LA

Video signal

Engine switch on (IG)

Shift lever in R

Camera lens not covered, displaying image

Pulse generation

(Refer to waveform 1)

Engine switch on (IG)

Shift lever in R

Camera lens covered, blacking out screen

Pulse generation

(Refer to waveform 2)

G22-9 (V-) - G22-13 (GND1)*1

W - LA

Ground

Always

Below 1 V

G22-10 (CA+) - G22-21(CGND)*1

R - G

Rear television camera assembly power supply

Engine switch on (ACC)

5.5 to 7.05 V

G22-11 (VMTI) - G22-13 (GND1)

G - LA

Visual mute signal

When image on display switches

3.5 V or higher

→ Below 1 V

→ 3.5 V or higher

G22-12 (B) - G22-13 (GND1)

R - LA

Power source (+B)

Always

11 to 14 V

G22-13 (GND1) - Body ground

LA - Body ground

Ground

Always

Below 1 Ω

G22-18 (TX1-)

W

AVC-LAN communication signal

-

-

G22-19 (TX-)

W

AVC-LAN communication signal

-

-

G22-20 (CSLD) - Body ground*1

Shielded - Body ground

Shield ground

Always

Below 1 Ω

G22-21 (CGND) - Body ground*1

G - Body ground

Camera ground

Always

Below 1 Ω

G22-24 (ACC) - G22-13 (GND1)

GR - LA

Power source (ACC)

Engine switch off

Below 1 V

Engine switch on (ACC)

11 to 14 V

G113-1 (GVIF+)

-

Video signal (Digital)

-

-

G113-2 (GVIF-)

-

Video signal (Digital)

-

-

G113-3 (GND)

Shielded

Shield ground

-

-

G100-1 (GV+)*2

-

Video signal (Digital)

-

-

G100-2 (GV-)*2

-

Video signal (Digital)

-

-

G100-3 (GND)*2

Shielded

Shield ground

-

-

  • *1: w/ Parking Assist Monitor System

    *2: w/ Panoramic View Monitor System

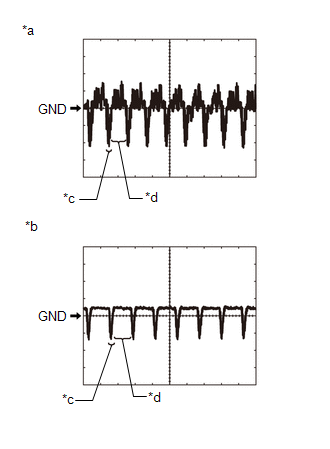

(a) Reference (Oscilloscope waveform):

(w/ Parking Assist Monitor System)

(1) Waveform 1 (camera lens not covered, displaying an image)

Item

Content

Measurement terminal

G22-8 (V+) - G22-13 (GND1)

Measurement setting

200 mV/DIV., 50 μs/DIV.

Condition

Engine switch on (IG), shift lever in R

HINT:

  • The video waveform changes according to the image sent by the rear television camera assembly.
  • The video waveform is constantly output when the engine switch is on (ACC).

*a

Waveform 1 (camera lens is not covered, displaying an image)

*b

Waveform 2 (camera lens is covered, blacking out the screen)

*c

Synchronization Signal

*d

Video Waveform

(2) Waveform 2 (camera lens covered, blacking out the screen)

Item

Content

Measurement terminal

G22-8 (V+) - G22-13 (GND1)

Measurement setting

200 mV/DIV., 50 μs/DIV.

Condition

Engine switch on (IG), shift lever in R

HINT:

  • The video waveform changes according to the image sent by the rear television camera assembly.
  • The video waveform is constantly output when the engine switch is on (ACC).

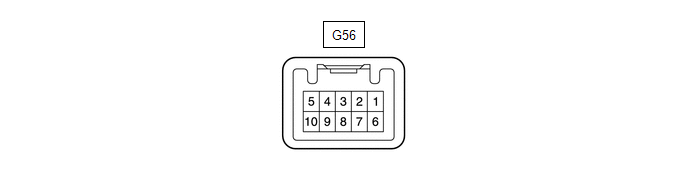

REMOTE TOUCH (REMOTE OPERATION CONTROLLER ASSEMBLY)

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G56-1 (+B) - G56-10 (GND)

R - LA

Power source (+B)

Always

11 to 14 V

G56-2 (ILL+) - G56-10 (GND)

SB - LA

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

11 to 14 V

G56-5 (ILL-) - G56-10 (GND)

GR - LA

Illumination signal

Light control switch off

Below 1 V

Light control switch in tail or head position

Pulse generation

G56-6 (ACC) - G56-10 (GND)

P - LA

Power source (ACC)

Engine switch on (ACC)

11 to 14 V

Engine switch off

Below 1 V

G56-8 (MO-)

W

Local bus communication signal

-

-

G56-9 (MO+)

B

Local bus communication signal

-

-

G56-10 (GND) - Body ground

LA - Body ground

Ground

Always

Below 1 Ω

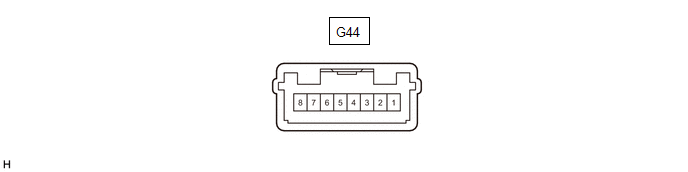

CLOCK ASSEMBLY

Terminal No.

(Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G44-1 (B) - G44-7 (E)

LA-L - W-B

Power source (+B)

Always

11 to 14 V

G44-2 (ACC) - G44-7 (E)

R - W-B

Power source (ACC)

Engine switch off

Below 1 V

Engine switch on (ACC)

11 to 14 V

G44-5 (TX+1)

P

Local bus communication signal

-

-

G44-6 (TX-1)

W

Local bus communication signal

-

-

G44-7 (E) - Body ground

W-B - Body ground

Ground

Always

Below 1 V

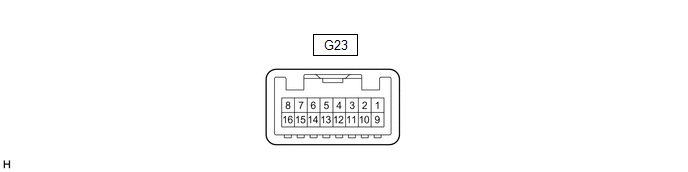

AIR CONDITIONING CONTROL ASSEMBLY

Terminal No. (Symbol)

Wiring Color

Terminal Description

Condition

Specified Condition

G23-1 (TX1+)

B

AVC-LAN communication signal

-

-

G23-2 (TX1-)

W

AVC-LAN communication signal

-

-

G23-4 (E) - Body ground

W-B - Body ground

Ground

Always

Below 1 V

G23-7 (ACC) - G23-4 (E)

P - W-B

Power source (ACC)

Engine switch off

Below 1 V

Engine switch on (ACC)

11 to 14 V

G23-8 (IG+) - G23-4 (E)

R - W-B

Power source (IG)

Engine switch on (IG)

11 to 14 V

Engine switch off

Below 1 V

G23-16 (+B) - G23-4 (E)

GR - W-B

Power source (+B)

Always

11 to 14 V

COMBINATION METER ASSEMBLY

Click here

DCM (TELEMATICS TRANSCEIVER) (w/ Manual (SOS) Switch)

Click here

PARKING ASSIST ECU (w/ Panoramic View Monitor System)

Click here

REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

Click here

HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System)

Click here

READ NEXT:

 Sending Malfunction (Navigation to APGS) (U0073,U0100,U0129,U0140,U0155,U0164,U0198,U023B,U0265,U1110)

DESCRIPTION These DTCs are stored when a malfunction occurs in the CAN communication circuit. DTC No. Detection Item DTC Detection Condition Trouble Area U0073 Sending Malfunction (Navi

 USB Audio System Recognition/Play Error

DESCRIPTION When a USB device or "iPod" is connected to the USB jack of the No. 1 stereo jack adapter assembly, it must have playable files. The device must also communicate with and be recognized by

 Vehicle Speed Signal Circuit between Navigation ECU and Combination Meter

DESCRIPTION The navigation ECU receives a vehicle speed signal from the combination meter assembly. HINT: A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter as

SEE MORE:

 Rear Disc Brake Pad

ComponentsCOMPONENTS ILLUSTRATION *1 NO. 2 PARKING BRAKE WIRE ASSEMBLY *2 REAR DISC BRAKE ANTI-SQUEAL SHIM KIT *3 REAR DISC BRAKE PAD *4 REAR DISC BRAKE CYLINDER ASSEMBLY *5 REAR NO. 1 DISC BRAKE ANTI-SQUEAL SHIM *6 REAR NO. 2 DISC BRAKE ANTI-SQUEAL SHIM *7 REAR

 Abnormal Height Sensor Data at Initialization (B2452)

DESCRIPTION The headlight ECU sub-assembly LH stores this DTC if the value from the rear height control sensor sub-assembly LH is out of range when performing initialization of the headlight ECU sub-assembly LH, such as when the vehicle is not level or jacked up. DTC No. Detection Item DTC De

© 2016-2023 Copyright www.lexguide.net
