Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
CHECK PARKING BRAKE ECU (BRAKE ACTUATOR ASSEMBLY)

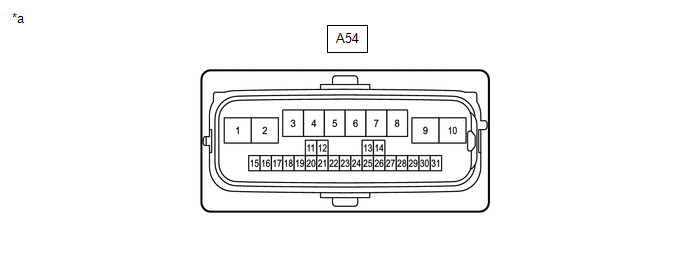

| *a | Front view of wire harness connector (to Parking Brake ECU (Brake Actuator Assembly)) | - | - |
(a) Disconnect the A54 parking brake ECU (brake actuator assembly) connector.
(b) Measure the voltage and resistance according to the value (s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| A54-9 (BEPB) - Body ground | R - Body ground | Parking brake power supply | Power switch off | 11 to 14 V |
| A54-26 (IG) - Body ground | B - Body ground | IG power supply | Power switch on (IG) | 8 to 16 V |
| A54-2 (EGND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
| A54-14 (SWI1) - Body ground | P - Body ground | Electric parking brake switch assembly | - | - |
| A54-24 (SWI2) - Body ground | W - Body ground | Electric parking brake switch assembly | - | - |
| A54-20 (SWO1) - Body ground | SB - Body ground | Electric parking brake switch assembly | - | - |
| A54-22 (SWO2) - Body ground | V - Body ground | Electric parking brake switch assembly | - | - |
| A54-4 (MRR+) - Body ground | LA-Y - Body ground | Parking brake motor RH (parking brake actuator assembly RH) (+) | - | - |
| A54-3 (MRR-) - Body ground | LA-L - Body ground | Parking brake motor RH (parking brake actuator assembly RH) (-) | - | - |
| A54-7 (MRL+) - Body ground | LA-G - Body ground | Parking brake motor LH (parking brake actuator assembly LH) (+) | - | - |
| A54-8 (MRL-) - Body ground | LA-W - Body ground | Parking brake motor LH (parking brake actuator assembly LH) (-) | - | - |
| A54-27 (SPD) - Body ground | L - Body ground | Vehicle speed direct input | - | - |
| A54-12 (CANH) - Body ground | B - Body ground | CAN communication line H | - | - |
| A54-11 (CANL) - Body ground | W - Body ground | CAN communication line L | - | - |
