Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY
.png)

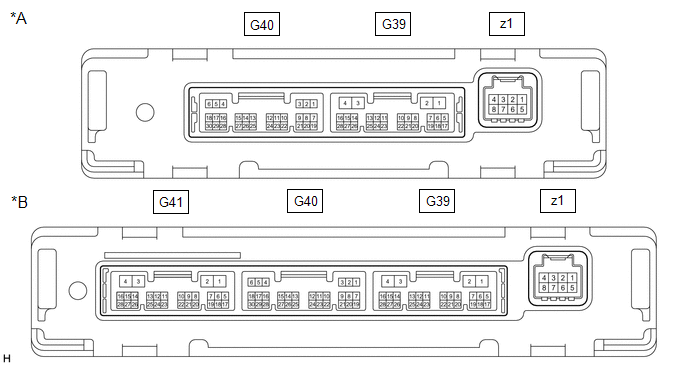

| *A | w/o Seat Heater | *B | w/ Seat Heater |
(a) Disconnect the G39 air conditioning amplifier assembly connector.
(b) Measure the voltage and resistance according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G39-2 (IG+) - G39-4 (GND) | R - W-B | Power source (IG) | Power switch on (IG) | 11 to 14 V |
| G39-2 (IG+) - G39-4 (GND) | R - W-B | Power source (IG) | Power switch off | Below 1 V |
| G39-1 (B) - G39-4 (GND) | B - W-B | Auxiliary battery power supply | Power switch off | 11 to 14 V |
| G39-4 (GND) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the G39 air conditioning amplifier assembly connector.
(d) Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| G39-17 (FDEF) - G39-4 (GND) | GR - W-B | Wiper Deicer signal | Power switch on (IG), Front wiper deicer switch off | 11 to 14 V |
| G39-17 (FDEF) - G39-4 (GND) | GR - W-B | Wiper Deicer signal | Power switch on (IG), Front wiper deicer switch on | Below 2.2 V |
