Lexus ES: Terminals Of Ecu
TERMINALS OF ECU
CHECK SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY)

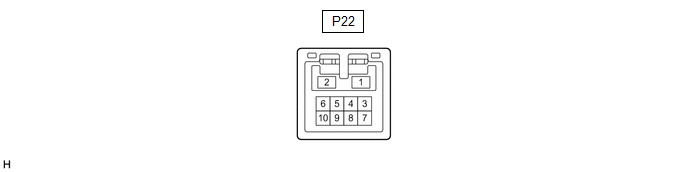

(a) Disconnect the P22 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(b) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P22-1 (B) - P22-2 (E) | B - W-B | Battery power supply | Engine switch off | 11 to 14 V |
| P22-2 (E) - Body ground | W-B - Body ground | Ground | Always | Below 1 Ω |
(c) Reconnect the P22 sliding roof ECU (sliding roof drive gear sub-assembly) connector.
(d) Measure the voltage according to the value(s) in the table below.
| Terminal No. (Symbol) | Wiring Color | Terminal Description | Condition | Specified Condition |
|---|---|---|---|---|
| P22-10 (OPN) - P22-2 (E) | W - W-B | Sliding roof motor open | Engine switch on (IG), OPEN switch on | Below 1 V |
| P22-10 (OPN) - P22-2 (E) | W - W-B | Sliding roof motor open | Engine switch on (IG), OPEN switch off | 11 to 14 V |
| P22-8 (CLS) - P22-2 (E) | SB - W-B | Sliding roof motor close | Engine switch on (IG), CLOSE switch on | Below 1 V |
| P22-8 (CLS) - P22-2 (E) | SB - W-B | Sliding roof motor close | Engine switch on (IG), CLOSE switch off | 11 to 14 V |
| P22-5 (UP) - P22-2 (E) | R - W-B | Sliding roof motor up | Engine switch on (IG), UP switch on | Below 1 V |
| P22-5 (UP) - P22-2 (E) | R - W-B | Sliding roof motor up | Engine switch on (IG), UP switch off | 11 to 14 V |
| P22-9 (DWN) - P22-2 (E) | LG - W-B | Sliding roof motor down | Engine switch on (IG), DOWN switch on | Below 1 V |
| P22-9 (DWN) - P22-2 (E) | LG - W-B | Sliding roof motor down | Engine switch on (IG), DOWN switch off | 11 to 14 V |
CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
Click here .gif)
