Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Power Trunk Lid System (for Gasoline Model) / System Diagram

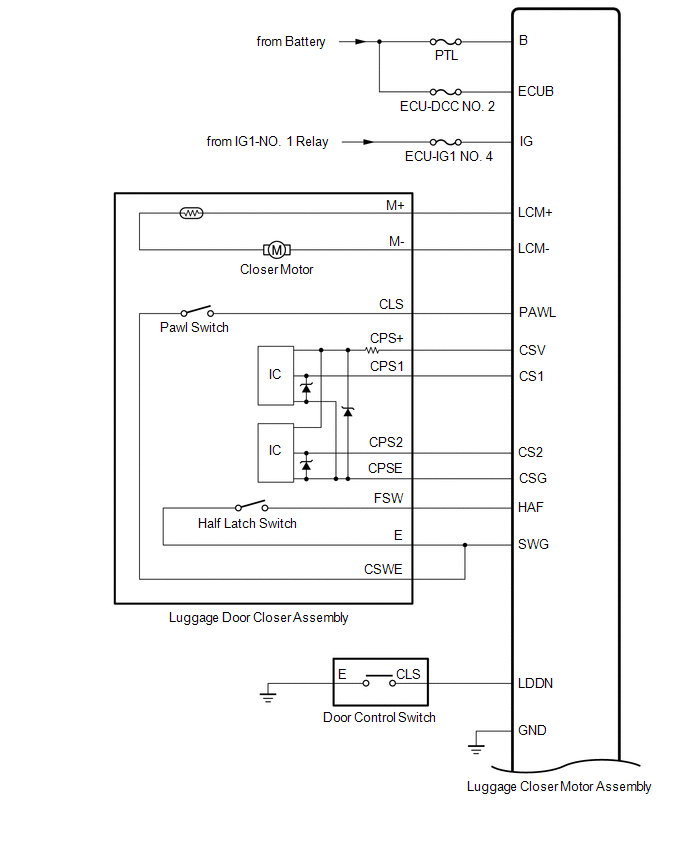

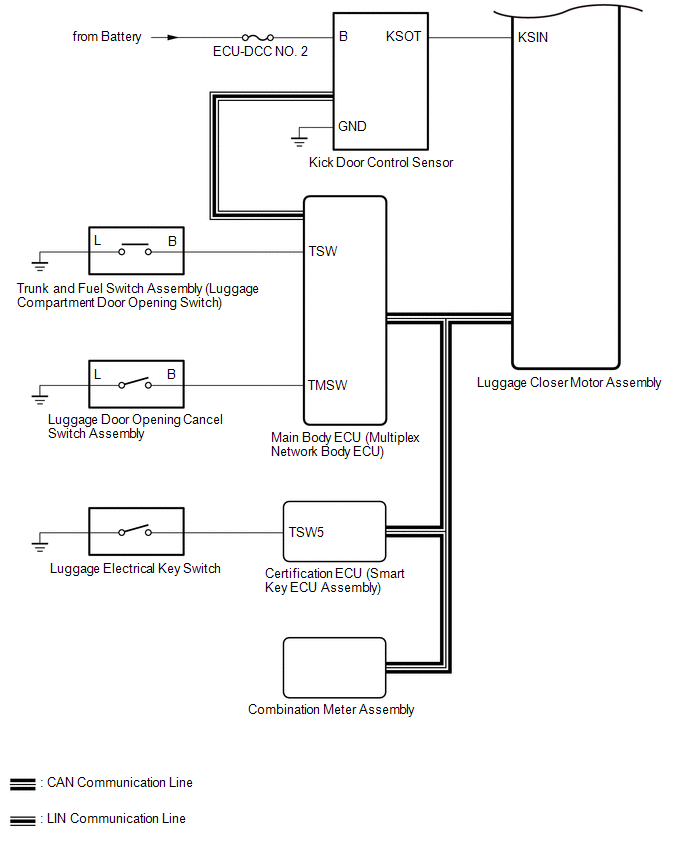

SYSTEM DIAGRAM

Communication Table

Transmitting ECU

Receiving ECU

Signal

Communication Method

Certification ECU (smart key ECU assembly)

Main body ECU (multiplex network body ECU)

Luggage electrical key switch signal

CAN

Combination meter assembly

Main body ECU (multiplex network body ECU)

Vehicle speed signal

CAN

Main body ECU (multiplex network body ECU)

Luggage closer motor assembly
  • Luggage electrical key switch signal
  • Vehicle speed signal
  • Luggage door opening cancel switch assembly signal
  • Luggage compartment door opening switch signal

CAN

Main body ECU (multiplex network body ECU)

Kick door control sensor
  • ACC signal
  • IG signal

LIN
