Lexus ES: System Diagram
Lexus ES (XZ10) Service Manual / Vehicle Exterior / Door / Hatch / Power Trunk Lid System (for Gasoline Model) / System Diagram

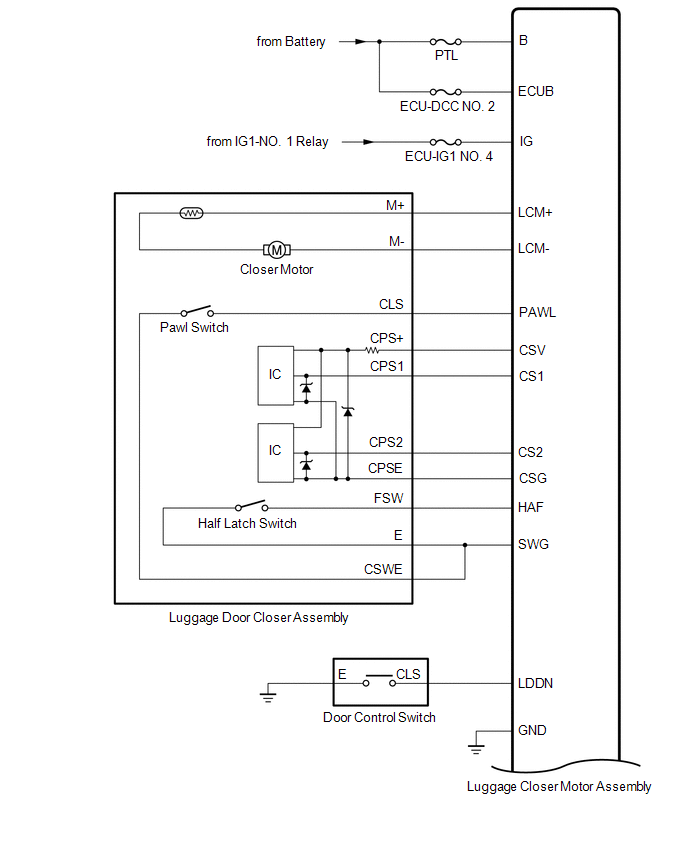

SYSTEM DIAGRAM
Communication Table | Transmitting ECU | Receiving ECU | Signal | Communication Method |
|---|---|---|---|
| Certification ECU (smart key ECU assembly) | Main body ECU (multiplex network body ECU) | Luggage electrical key switch signal | CAN |
| Combination meter assembly | Main body ECU (multiplex network body ECU) | Vehicle speed signal | CAN |
| Main body ECU (multiplex network body ECU) | Luggage closer motor assembly |
| CAN |
| Main body ECU (multiplex network body ECU) | Kick door control sensor |
| LIN |
