Lexus ES: System Diagram

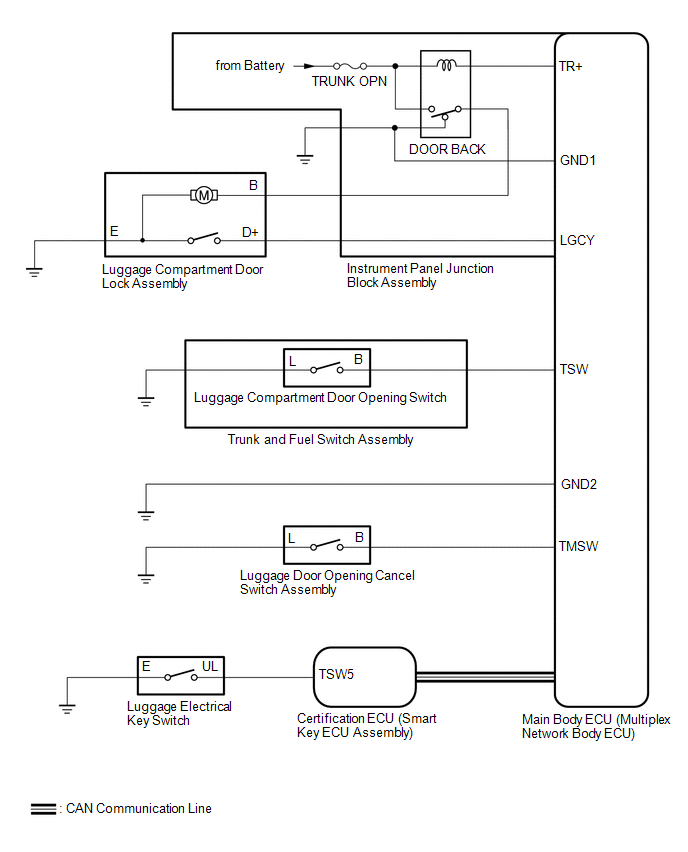

SYSTEM DIAGRAM
Communication Table | Sender | Receiver | Signal | Line |
|---|---|---|---|
| Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | Luggage compartment door lock assembly open operation signal | CAN |
READ NEXT:
System Description
SYSTEM DESCRIPTION LUGGAGE COMPARTMENT DOOR OPENER SYSTEM DESCRIPTION (a) If the trunk and fuel switch assembly (luggage compartment door opening switch) is pressed and the luggage compartment door is
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT:
Use the following procedure to troubleshoot the luggage compartment door opener system.
*: Use the Techstream.
PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP
Operation Check
OPERATION CHECK BASIC FUNCTION INSPECTION (a) When the trunk and fuel switch assembly (luggage compartment door opening switch) is pressed, check that the luggage compartment door unlatches. (b) While
