Lexus ES: System Diagram

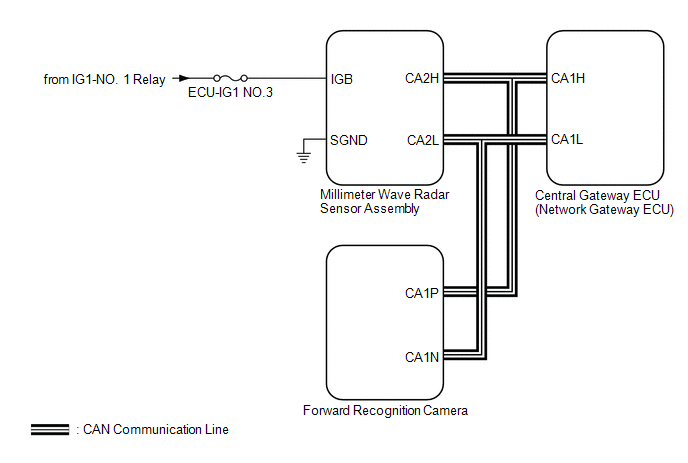

SYSTEM DIAGRAM
SYSTEM DIAGRAM

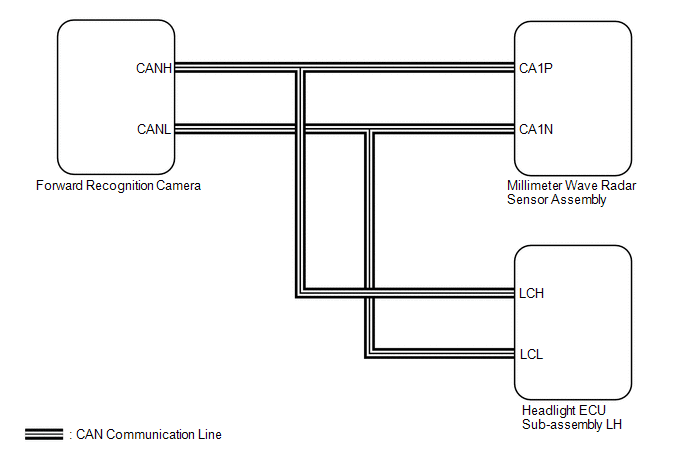

LOCAL CAN CIRCUIT
READ NEXT:
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT:
Before performing troubleshooting for the front radar sensor system, perform troubleshooting for the pre-collision system.
Click here
*: Use the Techstream.
