Lexus ES: Replacement
REPLACEMENT
PROCEDURE

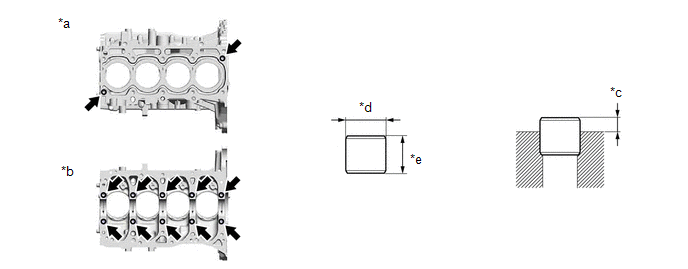

1. REPLACE RING PIN
NOTICE:
It is not necessary to remove the ring pins unless they are being replaced.
(a) Remove the 12 ring pins.
(b) Using a plastic hammer, install 12 new ring pins.
| *a | Top Side | *b | Bottom Side |
| *c | Protrusion Height | *d | 14 mm (0.551 in.) |
| *e | 12 mm (0.472 in.) | - | - |
Standard Protrusion Height:
5.0 to 7.0 mm (0.197 to 0.276 in.)

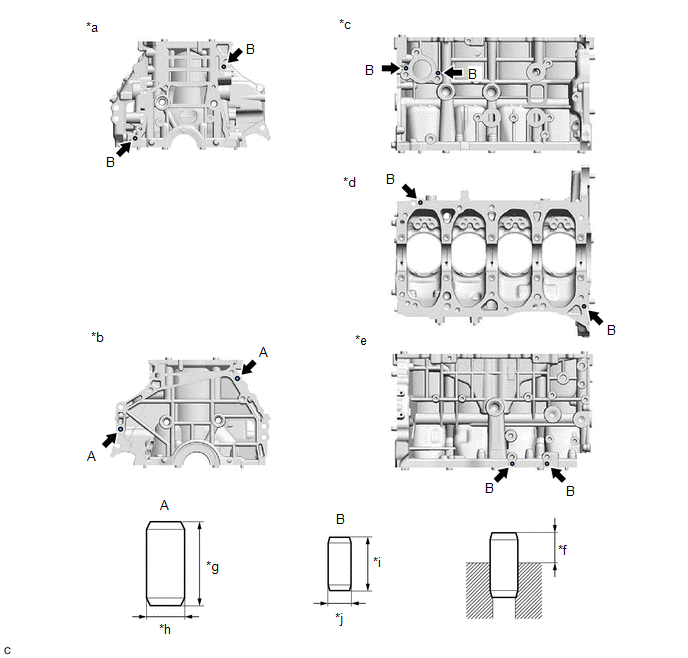

2. REPLACE STRAIGHT PIN
NOTICE:
It is not necessary to remove the straight pins unless they are being replaced.
(a) Remove the 10 straight pins.
(b) Using a plastic hammer, install 10 new straight pins.
| *a | Front Side | *b | Rear Side |
| *c | LH Side | *d | Bottom Side |
| *e | RH Side | *f | Protrusion Height |
| *g | 22 mm (0.866 in.) | *h | 10 mm (0.394 in.) |
| *i | 14 mm (0.551 in.) | *j | 6.0 mm (0.236 in.) |
Standard Protrusion Height:
| Straight Pin | Specified Condition |
|---|---|
| (A) | 11.0 to 13.0 mm (0.433 to 0.512 in.) |
| (B) | 5.0 to 7.0 mm (0.197 to 0.276 in.) |
