Lexus ES: Removal

REMOVAL

PROCEDURE

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

Click here

2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

Click here

3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

for UB80F:

Click here

5. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

6. REMOVE REMOTE OPERATION CONTROLLER ASSEMBLY

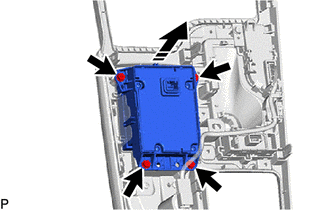

(a) Remove the 4 screws and remote operation controller assembly as shown in the illustration.

Remove in this Direction
