Lexus ES: Removal

REMOVAL

PROCEDURE

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

Click here

2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

Click here

3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for UA80E:

Click here

for P710:

Click here

for UB80F:

Click here

5. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

7. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

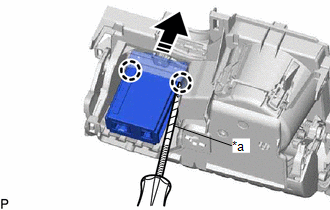

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.

*a

Protective Tape

Remove in this Direction
